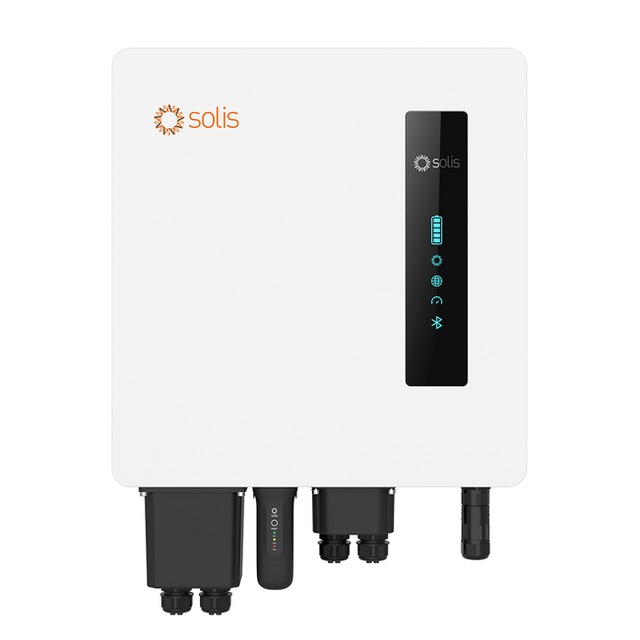

Solis S6-EA1P5K-L Single Phase AC-Coupled Inverter 5kW

Name: Solis S6-EA1P5K-L Single Phase AC-Coupled Inverter 5kW
Brand: Solis
Availability: InStock

Download datasheet

Specifications

Ac power kw	5
Battery voltage range	40–60 V
Communication options	RS485, CAN, Optional Wi-Fi, LAN
Dimensions mm	440 × 465 × 192
Efficiency percent	>93.5
Ingress protection	IP66
Max charge discharge current	105 A
Operating temperature range	-25 to +60°C
Phase	1/N/PE
Weight kg	19.9

Description

The Solis S6-EA1P5K-L is a single-phase, low-voltage AC-coupled inverter rated at 5 kW (5 kVA) output power. It is designed for residential energy storage systems and connects to lithium-ion batteries in the 40–60 V range with a maximum charge/discharge current of 105 A.

Key features include six configurable battery charging and discharging time-of-use (TOU) settings, real-time battery monitoring with remote upgrade capability, battery healing functions to extend life, and peak shaving support in self-use and generator modes. The inverter operates with a power factor greater than 0.99 and efficiency exceeding 93.5% when converting between battery and AC. It includes natural cooling, IP66 ingress protection, and operates safely in ambient temperatures from −25 °C to +60 °C.

Communications options include RS485, CAN, and optional Wi-Fi or LAN connectivity. The unit is equipped with LED indicators and Bluetooth connectivity for monitoring via app. DC connection uses terminal blocks; AC connection is via quick-connect plugs. A 10-year manufacturer warranty is provided in select European markets.
