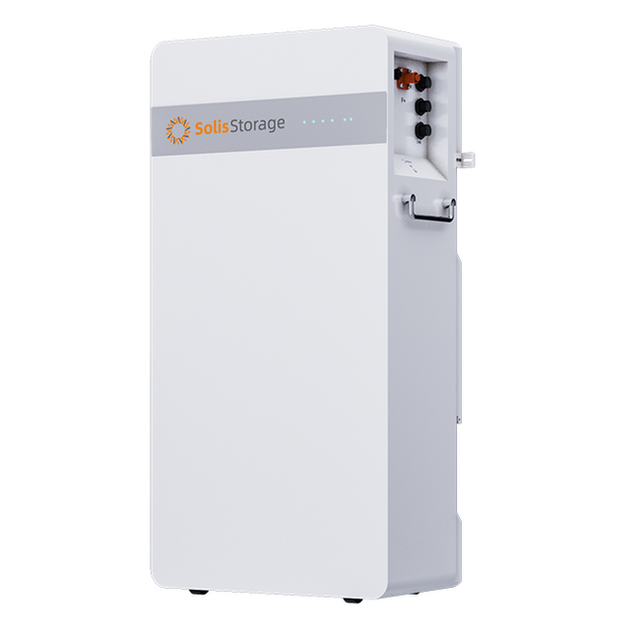

Solis IntelliHome-16kWh-OD Wall-Mounted Battery

The Solis IntelliHome-16kWh-OD is a low-voltage LiFePO₄ battery system designed for wall-mounted or floor-mounted installation in residential PV systems. With a nominal capacity of 16 kWh and 100% depth of discharge, it delivers reliable energy storage with a cycle life exceeding 6,000 cycles over 10 years.

Operating voltage ranges from 44.8 to 57.6 V, with maximum sustainable charge/discharge currents of 157 A. The system features natural cooling and operates safely from −20 °C to 55 °C, including built-in heating functionality for cold-climate installations. IP66 ingress protection ensures weather-resistant operation.

The battery integrates directly with Solis hybrid inverters (S5 and S6 series) via CAN and RS485 communication. Up to 8 units can be connected in parallel for maximum expandability. Dimensions are 470 × 950 × 240 mm with a weight of 126 kg.
