Pylontech P-Combiner-HV-6-V2 Power Combiner Box

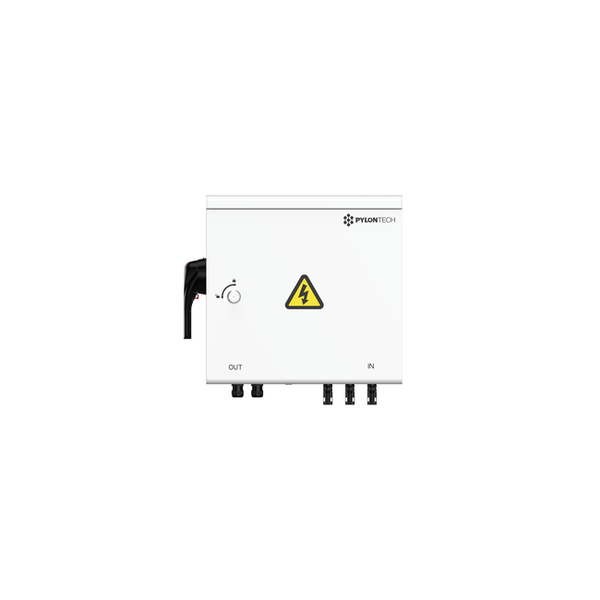

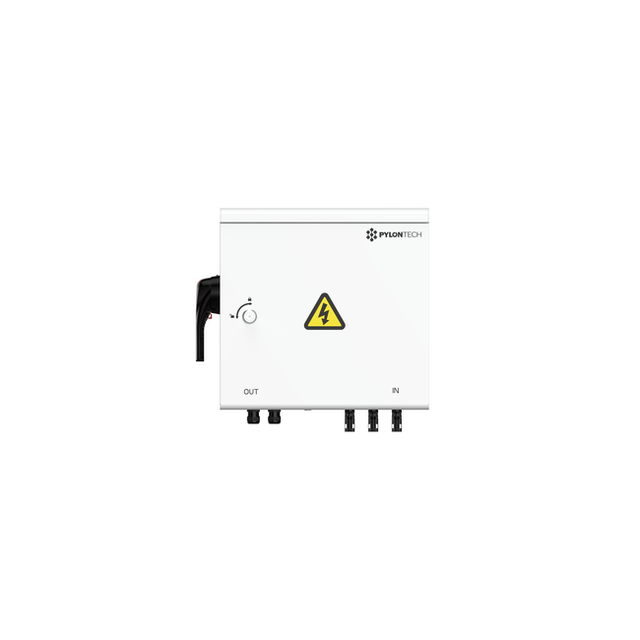

The P-Combiner-HV-6-V2 is a power combiner box designed for Pylontech ForceH series battery systems. It consolidates up to 6 battery units into a single output connection to the inverter or power conversion system. The unit features 6 input terminals (3 positive, 3 negative pairs) and 1 output terminal, with a maximum output current of 100 A at 1000 V nominal voltage.

The combiner box includes integrated protection with 160 A fuses and a disconnecting switch rated for 12 kA at 1500 VDC. It is housed in an IP55-rated enclosure suitable for wall mounting and operates across a temperature range of -20 to 55 °C with a design life of 15+ years at 25 °C.

All connections use Amphenol H4SMM8DM (positive) and H4SFM8DM (negative) Ampheno connectors for the input terminals, while the output uses M24 × 1.5 cable terminals. The unit meets IEC 61439-1 and IEC 61439-2 standards and carries CE, RoHS, WEEE, and TÜV SÜD safety certifications.
