36
Modules per pallet
720
Modules per container
20
Pallets per container
Specifications
Specifications
| Annual degradation percent | 0.4 |
| Bifaciality percent | 80 |
| Cable length m | 1.2 |
| Cell conversion efficiency percent | 26 |
| Cell count | 144 |
| Cell technology | n-type bifacial, n-Bycium+, half-cut |
| Certifications | IEC 61215, IEC 61730, IEC 62941, ISO 9001:2015, ISO 14001:2015, ISO 45001:2018 |
| Connector type | MC4-EVO2A |
| Dimensions mm | 2278 × 1134 × 30 |
| Efficiency percent | 23.4 |
| Fire performance | UL Type 29/Class C |
| First year degradation percent | 1 |
| Frame color | silver |
| Frame material | aluminum |
| Glass thickness mm | 2.0/2.0 |
| Imp a | 13.43 |
| Isc a | 14.09 |
| Junction box | IP68, 3-diodes |
| Maximum series fuse rating a | 30 |
| Maximum static load back pa | 2400 |
| Maximum static load front pa | 5400 |
| Maximum system voltage vdc | 1500 |
| Modules per container | 720 |
| Modules per pallet | 36 |
| Noct c | 45 |
| Pallets per container | 20 |
| Power density wp m2 | 232 |
| Power output warranty years | 30 |
| Power tolerance | 0-3% |
| Product warranty years | 12 |
| Safety class | II |
| Temperature coefficient pmax percent per c | -0.29 |
| Temperature coefficient voc percent per c | -0.25 |
| Vmp v | 45.05 |
| Voc v | 53 |
| Wattage w | 600 |
| Weight kg | 31.8 |
Description
Description

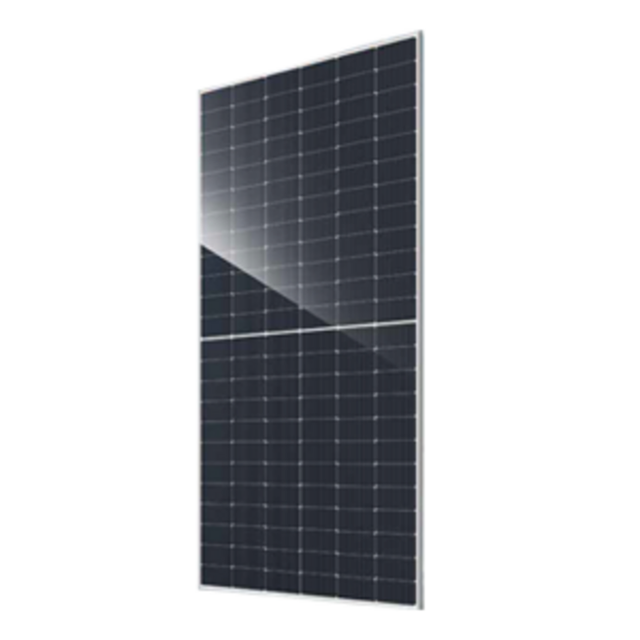

The JAM72D40-600-MB is a 600W n-type bifacial solar module featuring double glass construction with a silver-white frame. It utilizes 144 half-cut cells with n-Bycium+ technology and achieves up to 26% cell conversion efficiency, delivering 232 Wp/m² power density.
The module features a low light irradiance response and better temperature coefficient performance compared to standard modules. It includes MC4-EVO2A connectors and is available with a 1.2m or 1.3m cable length. The bifacial design enables energy generation from both front and rear surfaces.
Comprehensive certifications include IEC 61215, IEC 61730, IEC 62941, ISO 9001, ISO 14001, and ISO 45001. The module carries a 12-year product warranty and 30-year linear power output warranty with 1% first-year degradation and 0.4% annual degradation thereafter.
Product datasheet
Product datasheet
JA Solar JAM72D40-600-MB 600W N-Type Bifacial Solar Module
