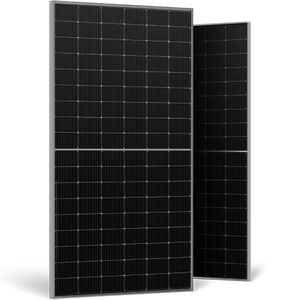

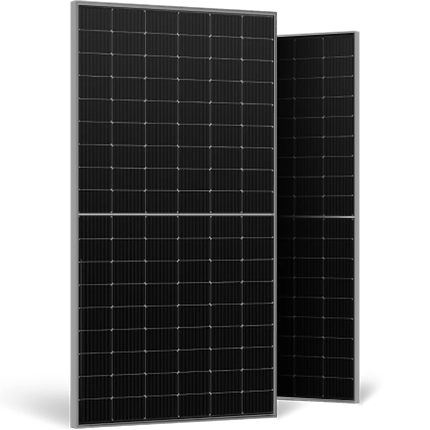

JA Solar JAM54D40 LB 455W n-type Bifacial
455 Wpn-type MonoSilver frame
n-type bifacial double glass high efficiency mono module with DEEP BLUE 4.0 technology. Rated 455W with better temperature coefficient and low irradiance response.
Module features 108 cells (6×18), very low light-induced degradation (LID), and IP68-rated junction box. Available in 430–455W power range.
25-year product warranty and 30-year linear power output warranty with 1% first-year degradation and 0.4% annual degradation thereafter.
Trade prices are for company accounts
Sign in or register your company to see live prices and place orders.
Specifications
- Wattage
- 455 Wp
- Cell technology
- n-type Mono
- Frame
- Silver frame
- Dimensions
- 1762×2mm+1134×2mm+30±1mm
- Modules per pallet
- 36
- Pallets per container
- 26
- Modules per container
- 936
36 modules per pallet · 26 pallets per container · 936 modules per container.
