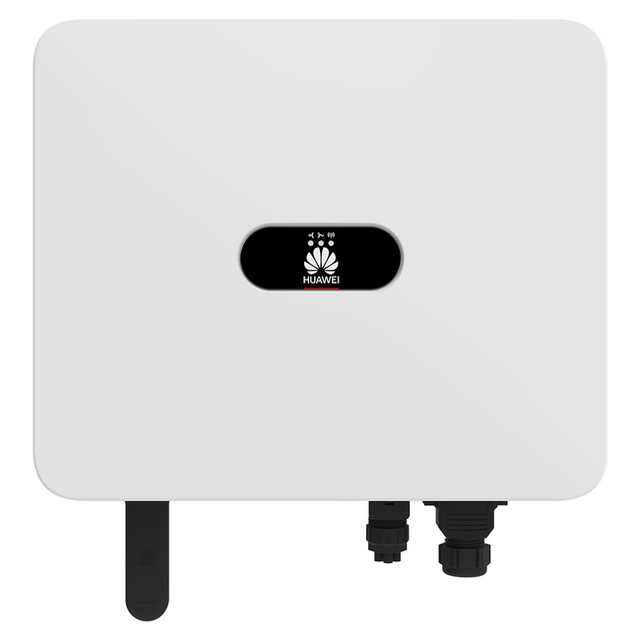

Huawei SUN2000-15K-MB0 Three-Phase Hybrid Inverter 15 kW

The Huawei SUN2000-15K-MB0 is a three-phase hybrid Smart Energy Controller designed for medium-sized commercial PV installations. It delivers 15 kW rated output power with a maximum efficiency of 98.4% and features two MPPT trackers with four DC inputs, supporting up to 22,500 W recommended PV power.

This inverter is battery-ready with two Smart String Energy Storage System terminals compatible with LUNA2000 series batteries (5–21 kW models). It includes integrated AFCI arc fault protection, Type II surge protection for both DC and AC sides, and comprehensive safety features including DC reverse-polarity protection and residual current monitoring.

The unit operates across 220–240 V / 380–415 V three-phase AC output with rated output current of 22.8 A at 380 V AC. It supports optional communication via RS485, WLAN/Ethernet (Smart Dongle-WLAN-FE), 4G/3G/2G (Smart Dongle-4G), or EMMA. Certified to major grid connection standards including IEC61727, IEC62116, EN50530, and others. IP66 protection rating; operating temperature range −25 °C to +60 °C; weight 21 kg.
