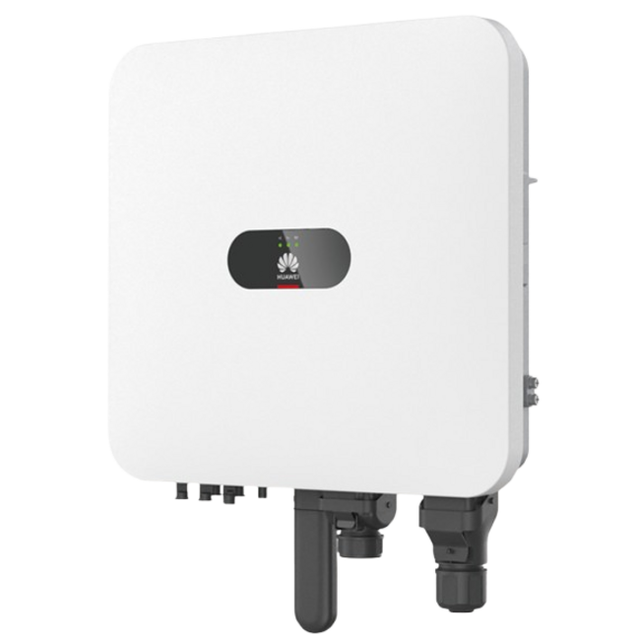

Huawei SUN2000-10K-MAP0 Three-Phase Hybrid Inverter 10kW

The Huawei SUN2000-10K-MAP0 is a three-phase hybrid inverter with 10 kW rated output power, designed for grid-connected and off-grid applications with battery storage compatibility. It features two independent MPPT trackers with maximum efficiency of 98.6%, supporting asymmetric three-phase loads with 200% overload capability for 10 seconds.

Active safety features include arc fault protection (AFCI), residual current detection (RSD), and connector temperature detection. The inverter is compatible with Huawei LUNA2000 battery series and SmartGuard backup devices for whole-home backup functionality, with automatic switchover time of ≤20 ms.

Operating in the temperature range –25°C to +60°C with natural convection cooling and IP66 rating, it integrates LED display, WLAN connectivity, and optional 4G/3G/2G communication via smart dongles. The unit weighs 21 kg and measures 490 × 460 × 130 mm with wall-mounted brackets included.
