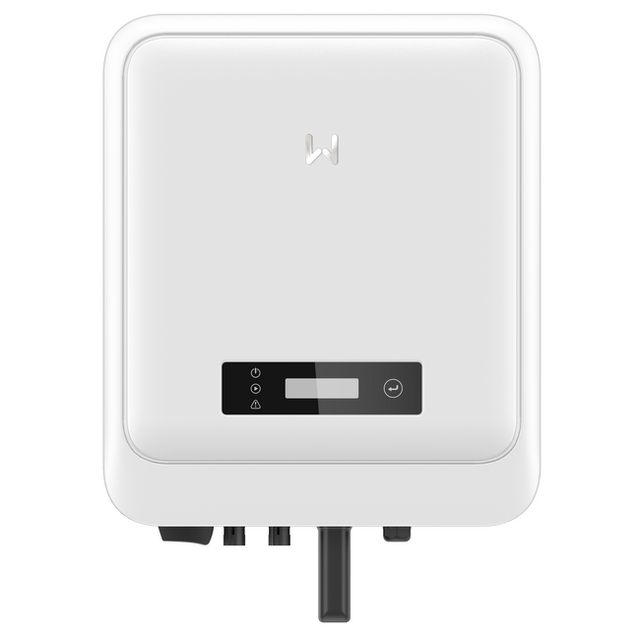

GoodWe GW5000-DNS-30-2 5kW Single-Phase Inverter

The GoodWe GW5000-DNS-30-2 is a compact single-phase grid-tied inverter designed for residential solar installations. Part of the DNS G3 series, it delivers 5 kW nominal output power with 2 independent MPPT trackers, each supporting one string input. The inverter features 150% DC input oversizing capability, allowing maximum DC input of 10 kW for optimized power generation.

Safety and reliability are built in with integrated residual current monitoring, PV reverse polarity protection, anti-islanding protection, and optional Arc Fault Failure Interrupter (AFCI) and Type II surge protection devices on both AC and DC sides. The fanless design with natural convection cooling delivers whisper-quiet operation below 25 dB, with maximum efficiency of 97.9%.

The inverter supports multiple communication protocols (WiFi, RS485, LAN, and optional 4G/DRM) for remote monitoring and load consumption tracking. It operates across wide temperature ranges (−25°C to +60°C) with IP66 ingress protection, making it suitable for diverse climates and outdoor mounting locations.
