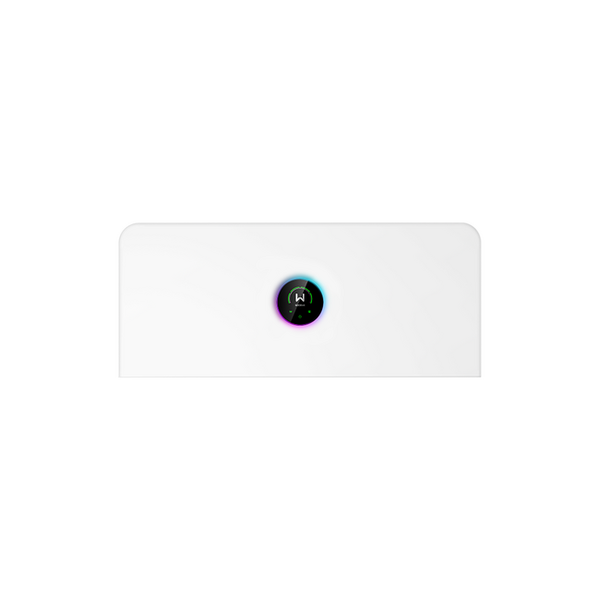

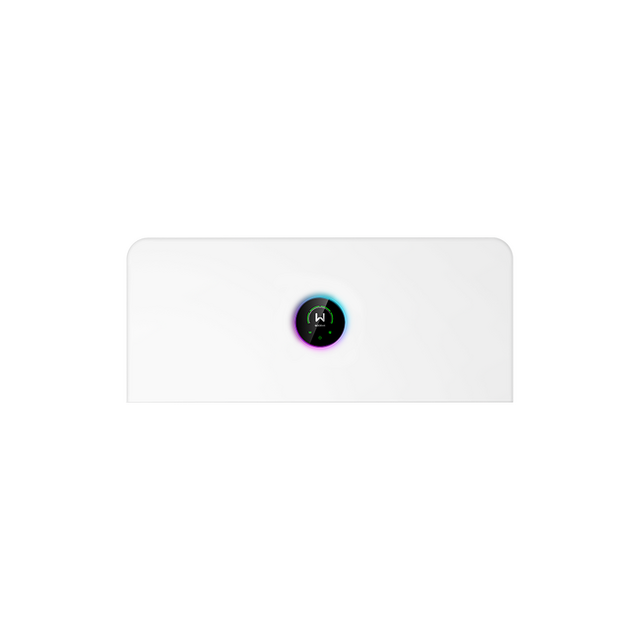

GoodWe GW3.6K-EHA-G20 3.6kW Single-Phase Hybrid Inverter

Download datasheet

Specifications
Ac power kw 3.6
Mppt count 2
Phase single

Description

The GoodWe GW3.6K-EHA-G20 is a 3.6 kW single-phase all-in-one hybrid inverter combining PV input, battery management, and UPS-grade backup switching in one compact unit. IP66-rated for indoor or outdoor installation, it integrates seamlessly with GoodWe ESA LFP battery modules (5.1 kWh and 8.3 kWh) to create a scalable residential energy storage system.

Key features include dual MPPT trackers with 2 inputs per MPPT, sub-4ms UPS switching time, AI-driven energy management, and multi-protocol communications (WiFi, LAN, Bluetooth). The inverter supports battery voltage range 350–550 V, with max charging power 5.4 kW and discharging power 3.96 kW. Max AC output is 3.6 kVA with European efficiency of 96.5%.

Equipped with integrated protections: PV reverse polarity, battery reverse polarity, anti-islanding, AC overcurrent and short-circuit, DC and AC surge protection (Type II), AFCI, and optional RSD. Wall or floor-mounted, weight 24 kg, dimensions 800 × 300 × 270 mm.
