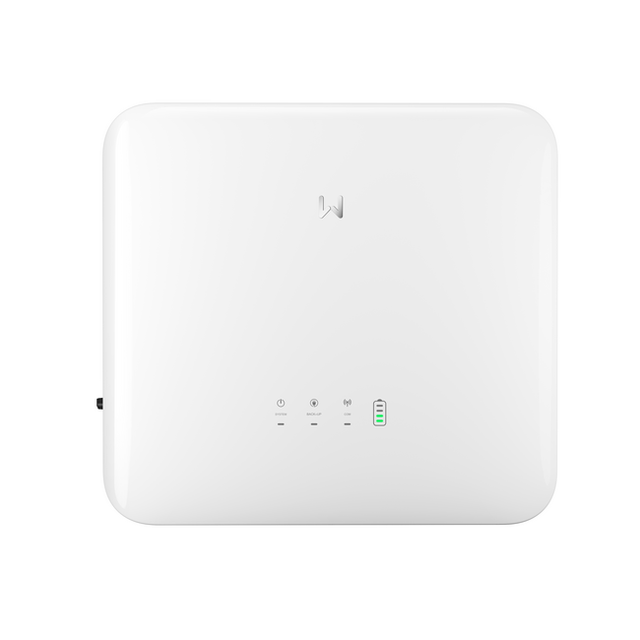

GoodWe GW10K-ET-20 10kW Three-Phase Hybrid Inverter with 3 MPPT

The GoodWe GW10K-ET-20 is a three-phase hybrid inverter designed for residential and small commercial PV systems. With a nominal output power of 10kW, it features up to 3 MPPT trackers, a maximum efficiency of 98.2%, and supports a wide battery voltage range of 150–720V for seamless energy storage integration.

The inverter includes integrated smart metering, powerful backup capability, and intelligent load controls for optimized self-consumption. It offers multiple smart operation modes to minimize energy costs and maximize autonomy when paired with compatible battery systems and EV chargers. Protection features include PV insulation monitoring, reverse polarity protection, anti-islanding, and optional AFCI 3.0 for enhanced safety.

With natural convection cooling, wall-mounted installation, IP66 ingress protection, and connectivity via WiFi, LAN, and Bluetooth, the inverter supports both 50 Hz and 60 Hz grid frequencies. The non-isolated topology and compact dimensions (496 × 460 × 221 mm) make it suitable for residential installation.
