Enstall FlatFix Fusion Stabilizer 1800mm
Opis

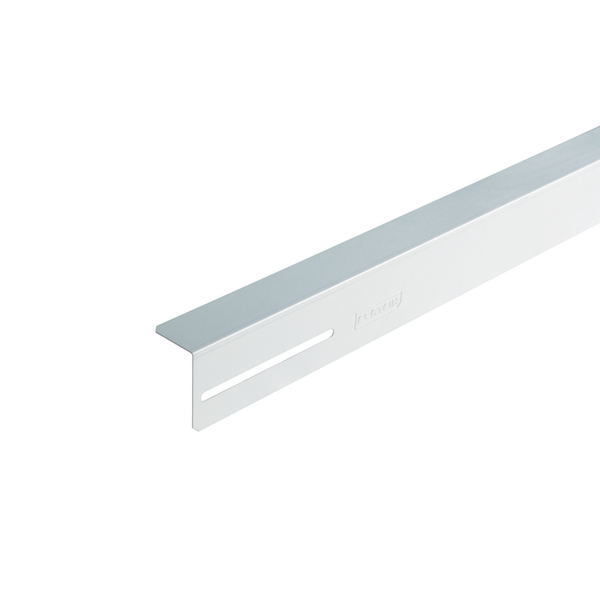

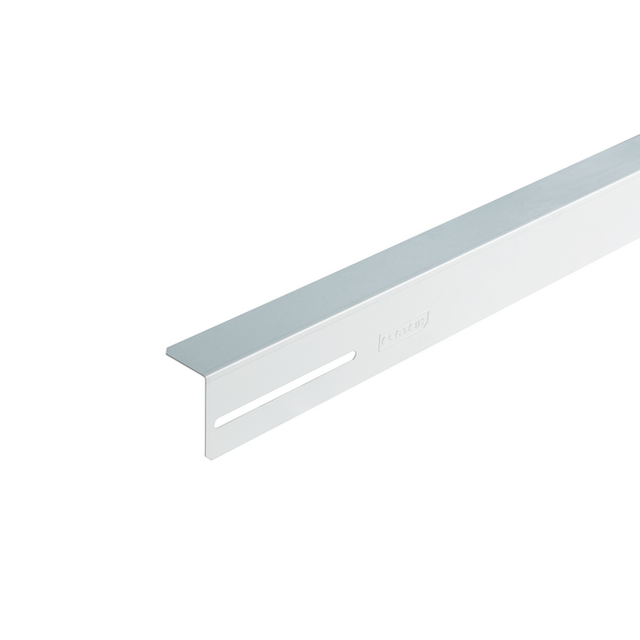

The Enstall FlatFix Fusion Stabilizer 1800mm is a reinforcement component for flat-roof mounting systems. It is positioned between two base profiles to provide structural support and stability to the installation. The stabilizer features overlapping design capability and includes an earthing angle for system grounding.
Manufactured from Magnelis Steel, the stabilizer measures 1800mm in length with a width of 61mm and a height of 41mm. It weighs 1.087 kg and is designed for use with the FlatFix Fusion mounting series.
Installation involves mounting the stabilizer to high base elements using M6 x 12 screws, ensuring alignment with the outer edges and overlapping of slotted holes for proper grounding connections.
