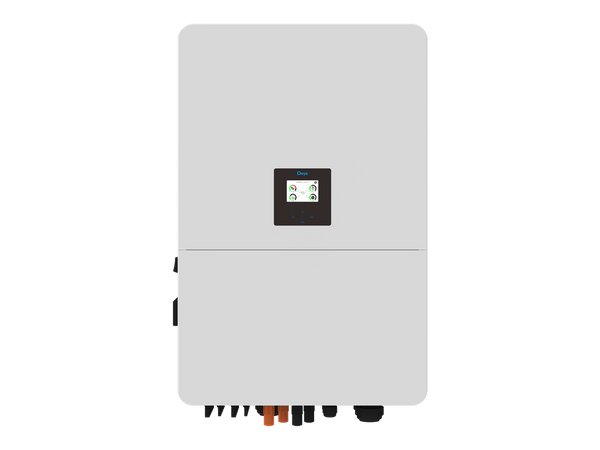

Deye SUN-80K-SG02HP3-EU-EM6 80kW Hybrid HV 3-phase inverter

Download datasheet

Specifications

Communication	RS485, CAN, Wi-Fi
Degree of protection ip	IP65
Height	927 mm
Lenght	314 mm
Number of mppt	6
Number of phases	3
Power	80000 W
String	2+2+2+2+2+2
Type	Hybrid
Voltage converters deye model series	SG02HP3-EU-EM6 \| 3 Phase \| 6 MPPT
Weight	105 kg
Width	606 mm

Description

Overview

The Deye SUN-80K-SG02HP3-EU-EM6 is an 80 kW three-phase high-voltage hybrid inverter with six MPP trackers and dual battery inputs. Designed for commercial and industrial PV-plus-storage, it reaches up to 98.7% efficiency with 100% unbalanced output.

Key Features

80 kW three-phase hybrid inverter, high-voltage battery (160-1000 V)
6 MPP trackers (2 strings each), max. DC input voltage 1000 V, MPPT range 150-850 V
2 battery inputs, max. charge / discharge current 80+80 A
100% unbalanced output; AC coupling to retrofit existing PV systems
Parallel operation for on-grid and off-grid; diesel-generator input supported
Max. efficiency 98.7%, IP65 for indoor and outdoor installation

Technical Specifications

Compatible Batteries

Requires a high-voltage (160-1000 V) battery system. Per Deye's official Approved Battery List, the SG02HP3 series is compatible with Deye BOS-G / GB-L, Dyness HV, Pylontech, BYD HVS/HVM and other approved HV systems. See the attached HV Battery Compatibility List; always confirm the exact model with the supplier.

Applications

Commercial and industrial solar self-consumption with storage
Backup power and off-grid operation; parallel scaling
Retrofit AC coupling of existing PV installations
