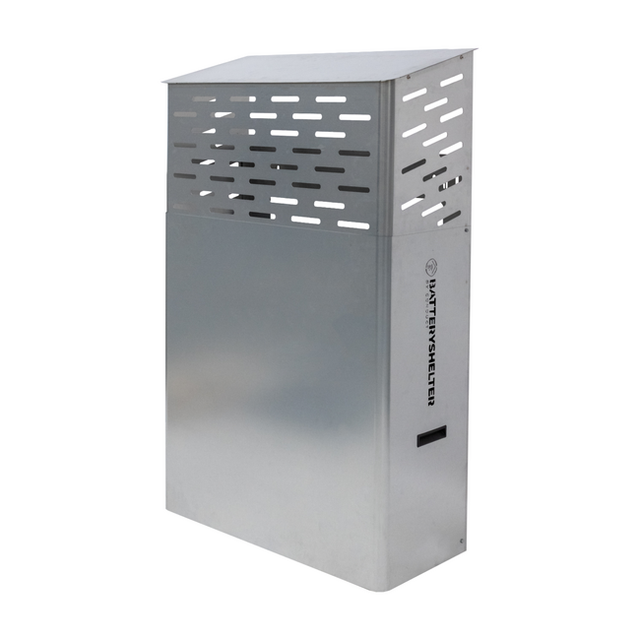

Conduct Batteryshelter BS051125-1 Wall-Mount Enclosure for Residential Battery Systems

Download datasheet

Specifications
Dimensions mm 950 W × 1530 H (A) / 1440 H (B) × 400 D
Finish Powder coating ISO 12944 – C3
Ik rating IK10
Ip rating IP44
Load capacity kg 320
Material Magnelis® (S250GD + ZM310), 1.5 mm thickness (2.0 mm back plate)
Mounting type Wall-mounted
Temperature incident range 1400–1500 °C
Ventilation Perforated front and side panels
Weight kg 53.5

Description

The Batteryshelter is a weather-resistant outdoor enclosure for residential battery energy storage systems, manufactured from Magnelis® steel with exceptional corrosion resistance. The unit features IP44 rating, IK10 impact protection, and is wind-certified to hurricane strength. It is supplied with mounting materials, equipotential bonding, and theft protection features.

The enclosure is wall-mounted (minimum 30 cm above ground level) and includes perforated front and side panels for controlled airflow and horizontal heat escape during thermal incidents. Powder coating is applied per ISO 12944 (C3 standard) and available in three standard colours: RAL 7016 (Anthracite Grey), RAL 9016 (Traffic White), and RAL 8004 (Copper Brown). Other RAL colours are available upon request.

The shelter accommodates a wide range of residential battery systems including LG, Enphase, BYD, Huawei, SolarEdge, Pylontech, GoodWe, Growatt, Sonnen, SolaX, Sungrow, Blauhoff, Dyness, and SigEnergy models, with physical compatibility determined by battery width (≤93 cm) and height (dependent on depth: max 148 cm at 20 cm depth, 146 cm at 30 cm depth, 144 cm at 40 cm depth).
