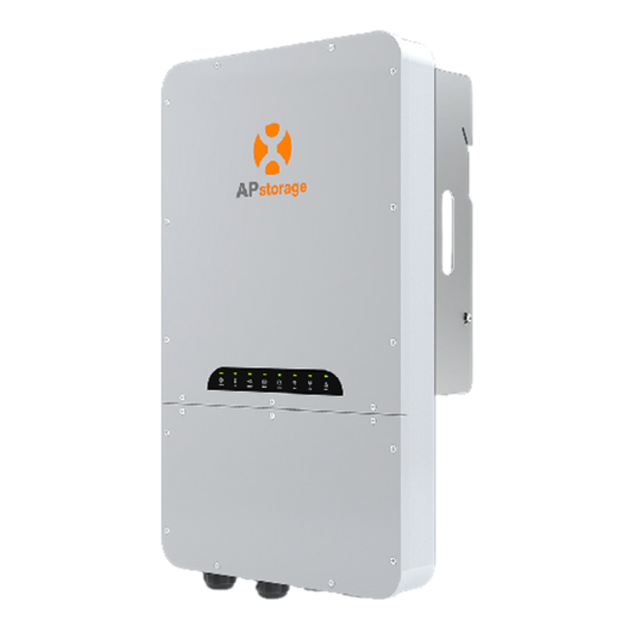

APsystems ELS-5K 5kW AC-Coupled Battery Inverter, Single Phase, 48V

Name: APsystems ELS-5K 5kW AC-Coupled Battery Inverter, Single Phase, 48V
Brand: APsystems
Availability: InStock

Download datasheet

Specifications

Ac power kw	5
Battery capacity range ah	50–800
Battery voltage nominal v	48
Dimensions mm	847×502×197
Efficiency max percent	96.5
Ip rating	IP65
Peak power va	7500
Phase	single phase
Warranty years	10
Weight kg	30

Description

The APsystems ELS-5K is a first-generation smart Power Conversion System designed for residential AC-coupled battery storage. It connects to a 48V low-voltage battery system and delivers intelligent energy management with automatic modes for backup, self-consumption, and time-of-use optimization.

Rated at 5000VA continuous output with peak backup power up to 7500VA, the ELS-5K achieves maximum efficiency of 96.5%. It features integrated monitoring, WIFI connectivity, and multiple communication ports (Ethernet, Wireless, RS485, CAN). The unit operates naturally cooled in ambient temperatures from −25°C to +65°C with IP65 protection.

Compatible with lithium-ion batteries (50–800Ah capacity), the inverter supports automatic BMS adaptation with maximum continuous charge/discharge currents of 100A. It complies with major European grid standards including VDE-AR-N 4105 and IEC/EN 62477-1.
