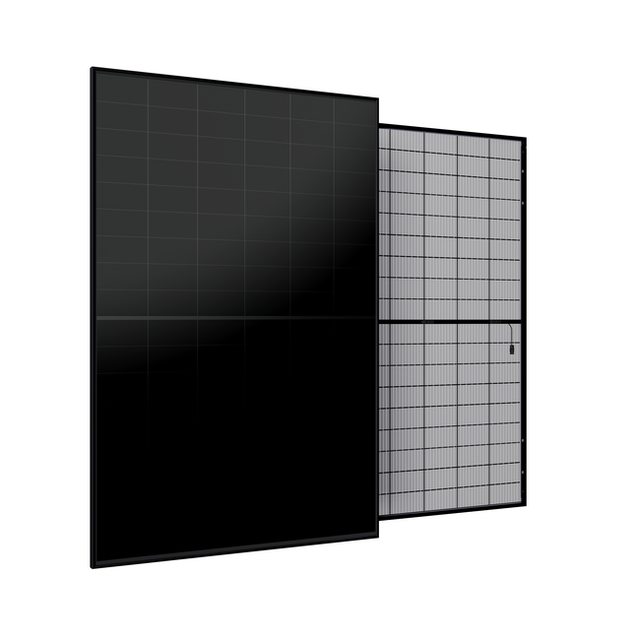

Aiko Neostar 2S+ 460W N-Type ABC Dual-Glass Solar Module

Download datasheet

Specifications
Annual degradation percent 0.35
Cable length mm 1200
Cell count 108
Cell technology N-Type ABC
Connector type MC4
Dimensions mm 1757 × 1134 × 30
Efficiency percent 23.1
Fire rating IEC Class A
First year degradation percent 1
Frame material Black anodized aluminum
Glass type Dual glass, 2.0 + 2.0mm coated semi tempered glass
Hail test 35mm diameter at 23 m/s
Imp a 13.29
Isc a 14.25
Maximum series fuse rating a 25
Maximum static loading back pa 2400
Maximum static loading front pa 5400
Maximum system voltage v 1500
Modules per container 962
Modules per pallet 37
Operating temperature range c -40 to +85
Performance warranty years 30
Pfas free true
Power tolerance percent +0 to +3
Product warranty years 25
Protection class Class II
Temperature coefficient isc percent per c 0.05
Temperature coefficient pmax percent per c -0.26
Temperature coefficient voc percent per c -0.22
Vmp v 34.62
Voc v 41.06
Wattage w 460
Weight kg 24.2

Description

The Aiko Neostar 2S+ AK-A460-MAH54Db-BK is a 460W dual-glass solar module featuring N-Type ABC cell technology with 108 cells arranged in a 6×18 configuration. The module is constructed with 2.0mm + 2.0mm coated semi-tempered glass, black anodized aluminum frame, and achieves 23.1% efficiency at STC.

Key technical features include partial shading optimization, improved temperature coefficient (-0.22%/°C for Voc), high temperature restriction, and micro-crack resistance. The module operates across -40°C to +85°C and is rated for DC 1500V maximum system voltage with a 25A maximum series fuse rating. It includes IP68 rated junction box with 3 bypass diodes and original MC4 connectors.

The module comes with a 25-year product warranty and 30-year linear performance warranty, with guaranteed performance of 90.6% after 10 years and 88.85% after 30 years. First-year degradation is ≤1% with annual degradation of ≤0.35% from year 2 onwards.
