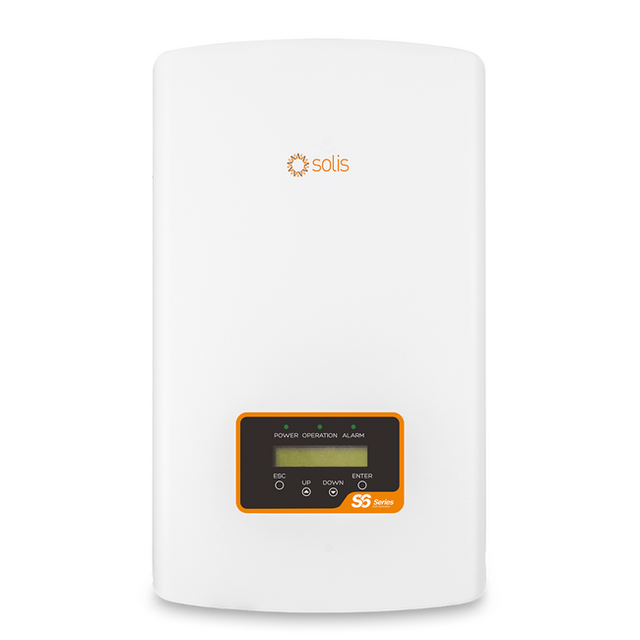

Solis S6-GR1P 2.5K Single Phase Grid-Tied Inverter

The Solis S6-GR1P 2.5K is a single-phase grid-tied inverter designed for residential PV systems. It features a 2 MPPT design with precise MPPT algorithm, high-frequency switching technology, wide voltage range (50–450 V MPPT), and low startup voltage (60 V). The inverter integrates arc-fault detection (AFCI) and an Export Power Manager (EPM) for enhanced safety and grid compatibility.

Specifications include a rated DC input power of 3.75 kW, rated AC output power of 2.5 kW, maximum efficiency of 97.3%, and maximum input current of 14 A. The unit is compact and lightweight at 11 kg with dimensions of 310 × 543 × 160 mm, operates in a wide temperature range (−25 to +60 °C), and is rated IP66 for ingress protection. Communication options include RS485 (optional Wi-Fi, GPRS, and LAN via Data Logging Stick).
