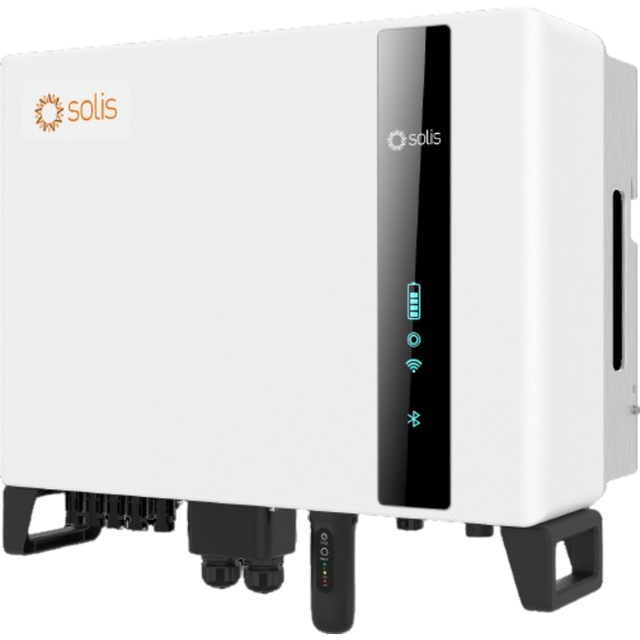

Solis S6-EH3P5K-H-EU 5kW Three-Phase Hybrid Energy Storage Inverter

The Solis S6-EH3P5K-H-EU is a three-phase hybrid energy storage inverter rated at 5 kW, designed for residential and commercial energy storage systems. It supports high-voltage lithium batteries in the 120–600 V range with intelligent charging and discharging management via AI-driven time-of-use tariffs and seamless integration with VPP and EMS platforms.

The inverter features three independent MPPT trackers (3 inputs), unbalanced three-phase output capability (up to 50% rated power per phase), and 160% PV input capacity to maximize solar energy utilization. It includes integrated DC switch, PV overvoltage protection, battery reverse protection, and optional AFCI 2.0 for enhanced safety.

Standard equipment includes energy meter and CT sensors, Bluetooth app support for configuration, and multiple communication options (CAN, RS485, optional Wi-Fi/LAN). The IP66-rated unit operates from −25 to +60 °C and weighs 27.6 kg with dimensions of 600 × 500 × 210 mm.
