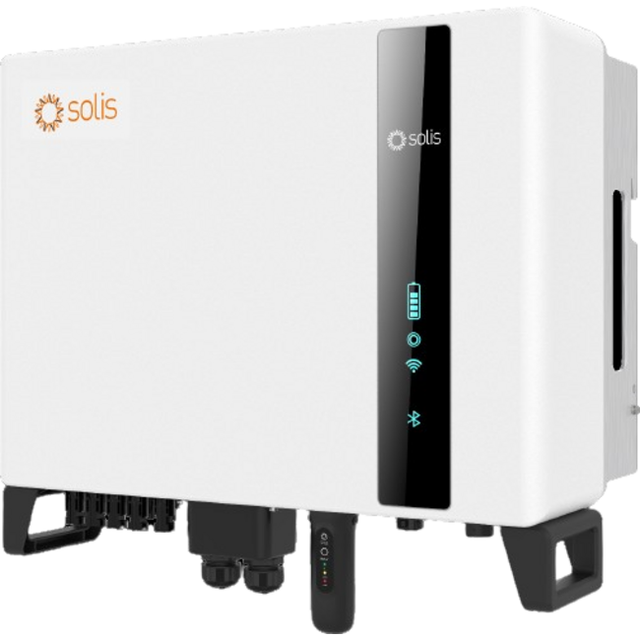

Solis S6-EH3P10K-H-EU 10kW Three-Phase Hybrid Inverter with 4 MPPT

The Solis S6-EH3P10K-H-EU is a 10 kW three-phase hybrid energy storage inverter designed for high-voltage lithium battery systems. It features four independent MPPT trackers with four inputs, 160% PV oversizing capability, and supports battery voltage ranges from 120 to 600 V (expandable to 700 V). The inverter delivers three-phase unbalanced output with up to 50% rated power per phase and includes intelligent energy management with Time-of-Use tariff optimization.

Built with transformerless topology and natural cooling, the S6-EH3P10K-H-EU offers fast backup switching in under 10 ms, integrated DC protection, optional AFCI 2.0, and communication via CAN, RS485, Wi-Fi, and LAN. It is compatible with mainstream lithium batteries and supports parallel and AC coupling configurations for system expansion.

The inverter is IP66-rated, operates across -25 to +60°C ambient temperatures, and achieves a maximum efficiency of 97.9%. It includes an integrated energy meter and three current transformers for comprehensive system monitoring and is rated for grid connection under G98/G99 and multiple European standards.
