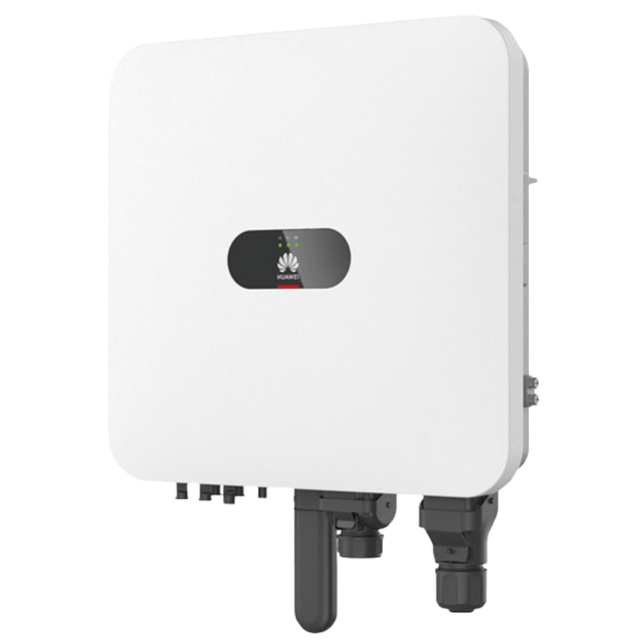

Huawei SUN2000-6K-MAP0 6kW 3-Phase Hybrid Inverter with AFCI & Battery Ready

The Huawei SUN2000-6K-MAP0 is a three-phase hybrid inverter with a rated AC output of 6 kW, designed for residential and small commercial solar installations. It features dual MPPT trackers with two inputs per tracker, delivering a maximum efficiency of 98.6% and supporting both on-grid and off-grid operation with compatible battery systems (LUNA2000-5/10/15-S0 or LUNA2000-7/14/21-S1).

The inverter is equipped with advanced safety and monitoring features including Arc Fault Circuit Interruption (AFCI), Residual Current Detection (RCD), connector temperature detection, and DC surge protection (Type II). It supports asymmetric load balancing with up to 100% three-phase asymmetric output and can deliver 200% overload for 10 seconds, with automatic switchover time of ≤20 ms when used with SmartGuard backup device.

Built for reliability with an IP66 rating, natural convection cooling, and low nighttime power consumption (< 5.5 W), the SUN2000-6K-MAP0 includes integrated WLAN communication with FusionSolar APP monitoring, optional RS485, Ethernet, 4G, and 3G connectivity. The unit weighs 21 kg and measures 490 × 460 × 130 mm, making it suitable for wall-mounted installations in various climate zones from −25°C to +60°C.
