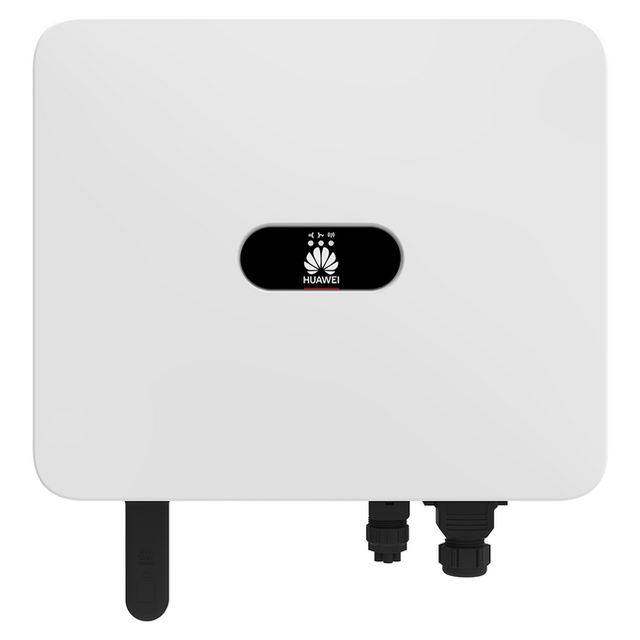

Huawei SUN2000-17K-MB0 Three-Phase Hybrid Inverter 17kW

The Huawei SUN2000-17K-MB0 is a three-phase hybrid smart energy controller designed for medium-sized commercial PV systems. With a rated output of 17 kW, it features two MPPT trackers with four DC inputs and delivers maximum efficiency of 98.4%. The inverter is battery-ready with two terminals compatible with Huawei LUNA2000-S0 energy storage systems.

Key features include AFCI active arc fault protection, Type II surge protection on both DC and AC sides, DC insulation monitoring, and anti-islanding protection. The unit operates with adjustable power factor (0.8 leading to 0.8 lagging) and includes smart air cooling with integrated WLAN and RS485 communication via optional Smart Dongle accessories.

Rated for three-phase output at 220 V AC/380 V AC, 230 V AC/400 V AC, or 240 V AC/415 V AC configurations, the inverter is IP66-protected, weighs 21 kg, and operates across a wide temperature range from −25 °C to +60 °C. It is compatible with Huawei optimizers including the SUN2000-450W-P2, SUN2000-600W-P, and MERC series.
