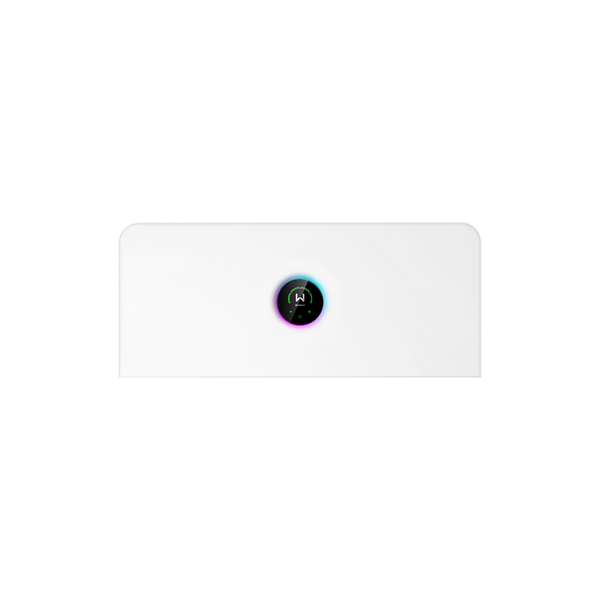

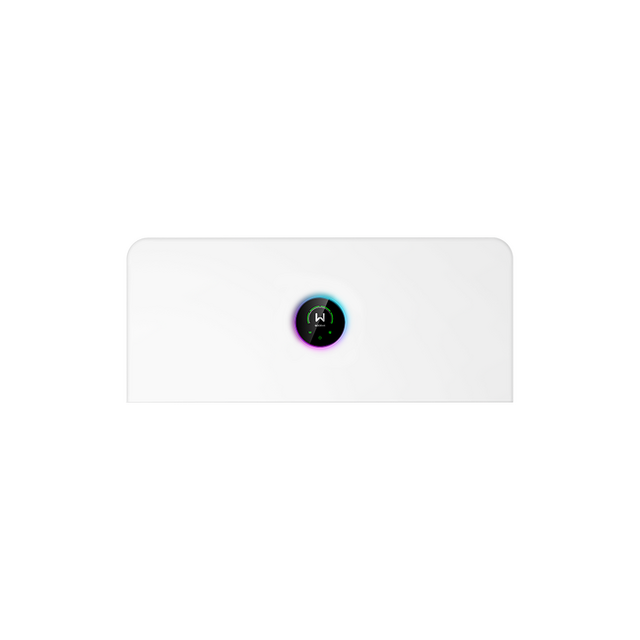

GoodWe GW5K-EHA-G20 5kW All-in-One Hybrid Inverter

The GoodWe GW5K-EHA-G20 is a 5 kW single-phase all-in-one hybrid inverter designed for residential energy storage systems. It integrates the inverter, battery management, and UPS-grade switching in a compact, IP66-rated enclosure suitable for indoor or outdoor installation.

Key features include dual MPPT trackers with 2 inputs per MPPT, advanced energy management via WiFi/LAN/Bluetooth connectivity, AFCI protection, integrated surge protection (SPD Type II), and UPS switching time under 4 milliseconds. The unit operates with high-voltage LiFePO₄ batteries (350–550V range) and supports scalable battery configurations up to 48 kWh.

Specifications: 5 kW nominal AC power, 97.6% peak efficiency, 24 kg weight, dimensions 800 × 300 × 270 mm, operating temperature range −35 to +60°C with derating at +40°C, natural convection cooling, and IP66 ingress protection rating.
