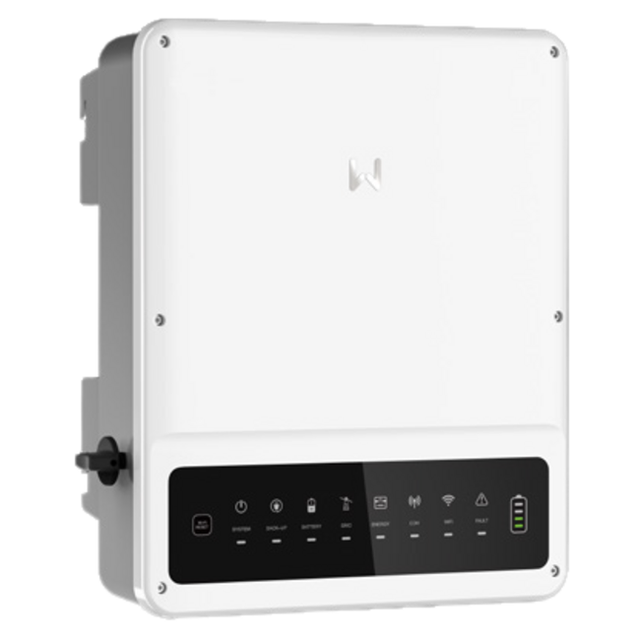

GoodWe GW5000N-EH-BE-2 5kW Single-Phase Hybrid Inverter 2 MPPT

Name: GoodWe GW5000N-EH-BE-2 5kW Single-Phase Hybrid Inverter 2 MPPT
Brand: GoodWe
Availability: InStock

Download datasheet

Specifications

Ac power kw	5.0
Battery type	Li-Ion
Dimensions mm	354 x 433 x 147
European efficiency percent	97.0
Max backup output va	5000
Max battery voltage v	460
Max efficiency percent	97.6
Mppt count	2
Phase	single
Warranty years	5
Weight kg	17

Description

The GoodWe GW5000N-EH-BE-2 is a single-phase hybrid inverter rated at 5kW nominal output power, designed for residential PV systems with battery storage integration. It features 2 MPPT trackers with dual DC input strings, a high-voltage battery input (85–460V nominal 350V), and supports up to 25A continuous charging and discharging. The inverter achieves 97.6% maximum efficiency and 97.0% European efficiency, with advanced battery-to-AC conversion at 96.6%.

The unit operates with natural convection cooling (fanless design) and includes comprehensive protection: PV string current monitoring, PV insulation detection, residual current monitoring, reverse polarity protection for both PV and battery, anti-islanding, AC overcurrent and short-circuit protection, and Type II DC and Type III AC surge protection. UPS-level backup switching is below 10ms, enabling reliable power supply during grid outages.

Communication options include RS485 and CAN for battery management system integration, plus WiFi/Ethernet (optional) for portal connectivity. The inverter is wall-mounted, IP65-rated, operates in temperatures from −25 to +60°C, and includes an integrated DC switch. Compatible with high-voltage batteries including GoodWe Lynx Home F and BYD HVS/HVM series.
