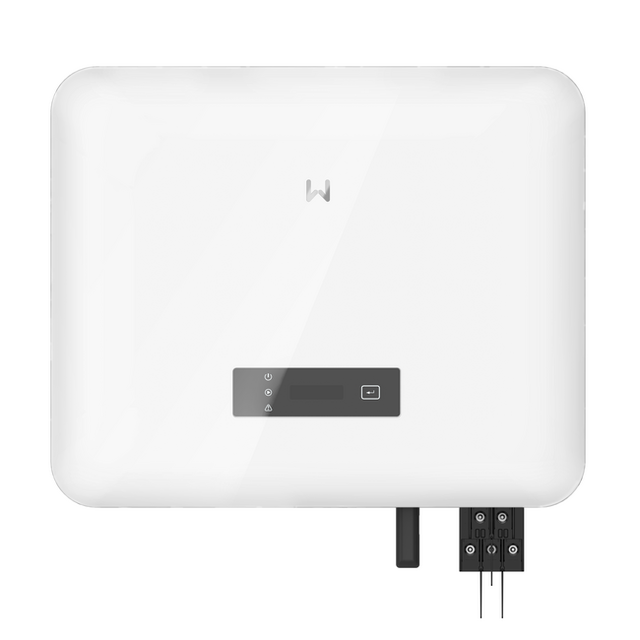

GoodWe GW5000-SDT-30 5kW Three-Phase String Inverter

The GoodWe GW5000-SDT-30 is a three-phase string inverter designed for residential and small commercial PV systems with high-power modules. It delivers a nominal output power of 5.0 kW with maximum AC active power of 5.5 kW and features two independent MPPT trackers for optimized energy harvesting across different string orientations.

Built for silent operation with natural convection cooling, the inverter achieves 98.4% maximum efficiency and 98.0% European efficiency. Key safety features include integrated PV insulation detection, residual current monitoring, anti-reverse polarity protection, and optional Type II surge protection on both DC and AC sides. Optional AFCI 3.0 function and PID recovery are available for enhanced safety.

The inverter supports smart energy management with load control and 24-hour consumption monitoring via WiFi, LAN, and Bluetooth connectivity. Operating temperature range is −30 to +60 °C with IP66 ingress protection rating.
