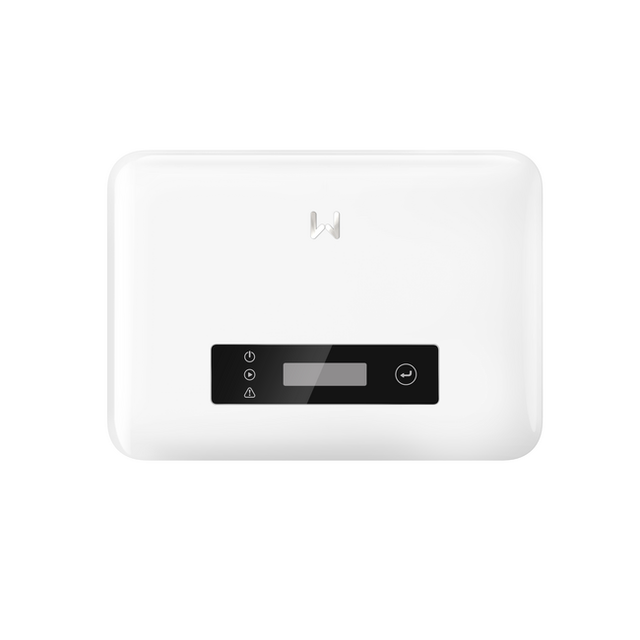

GoodWe GW1500-XS-30-4 1500W Single-Phase String Inverter

The GoodWe GW1500-XS-30-4 is a compact, lightweight single-phase string inverter designed for residential PV systems. Part of the XS G3 series, it delivers up to 1500W nominal output power with a maximum efficiency of 97.2%. The inverter features low start-up voltage (50V), natural convection cooling, and operates silently with noise emission below 20 dB.

Key specifications include 1 MPPT tracker with a maximum input current of 16A per string, MPPT operating voltage range of 40–450V, and maximum input voltage of 600V. The inverter supports multiple communication protocols (RS485, WiFi, LAN, 4G, or Bluetooth optional) and includes integrated protection features such as PV string current monitoring, insulation resistance detection, residual current monitoring, and anti-islanding protection.

Housed in a compact enclosure measuring 306 × 218 × 119 mm and weighing 4.6 kg, the GW1500-XS-30-4 is suitable for installation indoors or on external walls. It is compatible with high-power modules and supports additional functionalities such as power export limiting and 24-hour load monitoring via GoodWe accessories.
