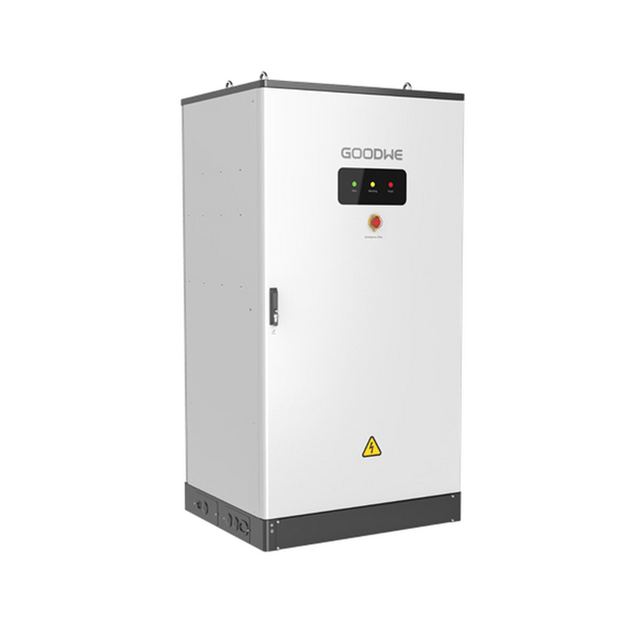

GoodWe GW112.6-BAT-AC-G10 112.6kWh HV Battery Cabinet

The GW112.6-BAT-AC-G10 is a high-voltage lithium iron phosphate (LFP) battery system designed for commercial and industrial energy storage applications. With a nominal capacity of 112.6 kWh (usable 110 kWh) and nominal voltage of 563.2 V, it delivers reliable backup power, peak shaving, and optimized load management across medium to large C&I scenarios including industrial parks, agricultural, and commercial complexes.

The system features advanced 6-layer safety protection with aerosol-based fire suppression at both pack and cabinet levels, enabling safe outdoor operation in climate zones from -20 to +55°C. It supports continuous 0.9C charging and 1.1C discharging with a round-trip efficiency of 96%, and includes integrated air conditioning for effective thermal management. The IP55-rated cabinet (1055 × 2000 × 1055 mm) weighs less than 1400 kg and is built to anti-corrosion class C4.

Scalable and flexible, the BAT 112 supports parallel connections of up to 4 units, enabling system expansion to 450.4 kWh for growing energy demands. It integrates seamlessly with GoodWe ET hybrid inverters and Static Transfer Switch (STS) boxes, making it a complete all-in-one energy storage solution for demanding C&I applications.
