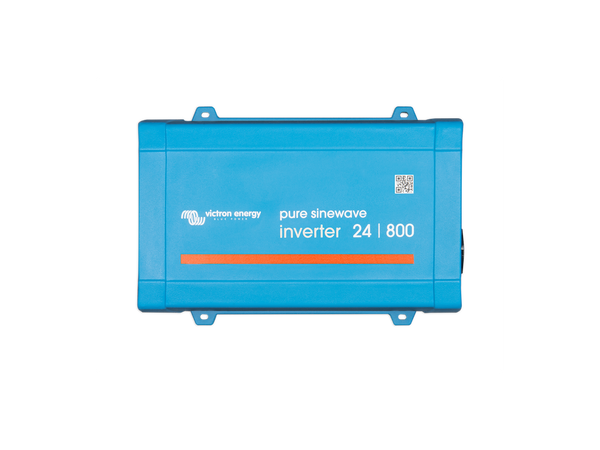

Victron Inverter Phoenix 24/800

The VE.Direct communication port offers versatile connectivity options:
Connect to your computer using the VE.Direct to USB interface cable.
Connect to Apple and Android smartphones, tablets, MacBooks and other devices using the VE.Direct Bluetooth Smart dongle.

It is fully configurable, allowing you to adjust settings such as:

• Low battery alarm and reset levels
• Low battery shutdown and restart levels
• Dynamic shutdown based on load
• Output voltage (210 - 245 V)
• Frequency (50 Hz or 60 Hz)
• ECO mode activation and sensitivity level

Monitoring options include:

• Input and output voltage
• Percentage load
• Alarms
• Proven reliability
• The inverters boast proven reliability thanks to a full bridge topology and toroidal transformer, ensuring a long service life. They are protected against short circuits and overheating caused by overload or high ambient temperature.

High starting power
High starting power is provided to accommodate loads such as power inverters for LED lamps, halogen lamps or power tools.

ECO mode
ECO mode saves energy by switching to standby mode when the load drops below a set value (min. load: 15 W). It switches on periodically (adjustable, default setting: every 2.5 seconds) and remains on if the load exceeds the set level.

Remote on/off
The remote on/off function allows external control via the two-pole connector or between the battery plus and the left contact of the two-pole connector.

LED diagnostics
LED diagnostics are available for troubleshooting as described in the manual.

Automatic transfer switch
An automatic transfer switch can be used to transfer the load to another AC source, for example during a power outage. For low-power inverters, the Filax automatic transfer switch is recommended due to its very short switching time (less than 20 milliseconds), which ensures continuous operation of computers and other electronic devices. There are different variants of output sockets available to suit different needs.
