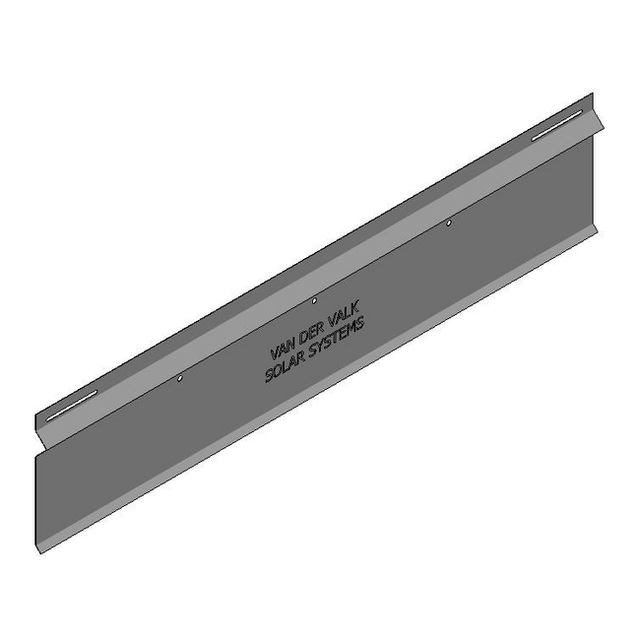

Van der Valk ValkPro+ Galvanised Backplate P10° 1360mm

Galvanised steel backplate for Van der Valk ValkPro+ flat-roof PV mounting systems. Designed for portrait-orientation arrays with a 10° tilt angle and PV panel lengths of 1300–1500 mm. The backplate measures 1360 mm in length and 23 mm in depth, accommodating panel frame heights of 28–50 mm.

The backplate protects the rear of the PV system from weather exposure. It is installed by inserting into recesses in the aluminium rear mounting elements and fastened with self-tapping bolts. Where backplates overlap, they are secured together using self-tapping screws. The galvanised finish provides corrosion resistance for long-term durability on flat roofs.

Part of the ValkPro+ system, which features quick assembly (approximately three minutes per panel), integrated metal earthing connectors, minimal ballast requirements, and suitability for panels up to 2 metres in length and high-power modules.
