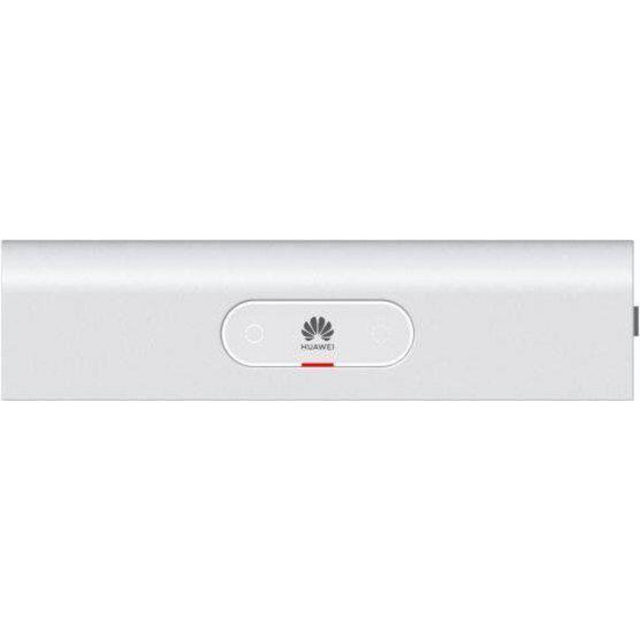

Huawei LUNA2000-10KW-C1 HV Battery Power Module

The Huawei LUNA2000-10KW-C1 is a high-voltage battery power module and BMS (Battery Management System) designed for the LUNA2000 smart string energy storage system. One power module is required per battery system to manage charging and discharging operations up to 10.5 kW maximum.

The module operates across single-phase (350–560 V) and three-phase (600–980 V) configurations with natural convection cooling and IP66 protection for outdoor or indoor installation. It communicates via RS485, FE, and CAN protocols and is compatible with Huawei SUN2000 inverters ranging from 2 kW to 25 kW.

Operating range from −20 °C to +55 °C, rated for 4,000 m maximum altitude with derating above 2,000 m. Compliant with CE, RCM, CEC, VDE, IEC, and UN38.3 standards.
