Especificaciones
Especificaciones
| Ac power kw | 100 |
| Capacity | 211 kWh |
| Cell technology | LFP (lithium iron phosphate) |
| Cooling mode | Liquid-cooled |
| Cycle life | >8000 cycles (0.5C @ 25°C, 90% DOD) |
| Dimensions mm | 1340 × 1300 × 2300 |
| Efficiency | 90% |
| Ip rating | IP55 |
| Operating temperature range | -30°C to +50°C |
| Voltage nominal | 600–803 V |
| Weight kg | 2600 |
Descripción
Descripción

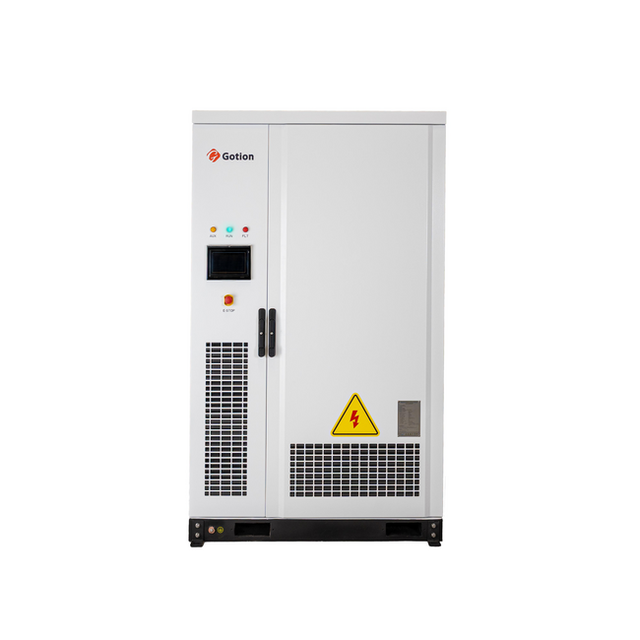

The Gotion ESC-R100-211-CE is an industrial and commercial all-in-one energy storage system with a usable capacity of 211 kWh and rated power output of 100 kW. It features a robust cabinet design with IP55 protection rating, suitable for outdoor installation and resistant to diverse weather conditions.
The system employs LFP (lithium iron phosphate) battery cells with liquid cooling technology to maintain stable performance under high loads and extreme temperatures (-30°C to +50°C operating range). It supports multi-machine parallel connection for flexible expansion and includes integrated energy management system (EMS) with real-time monitoring, remote fault analysis, and seamless off-grid switching capability.
Key specifications: maximum system efficiency 90%, PCS efficiency 98%, depth of discharge 90%, cycle life >8000 cycles at 0.5C, voltage range 600–803 V, dimensions 1340 × 1300 × 2300 mm, weight 2.6 tonnes. The unit is compliant with GB/T36276, IEC62619, IEC62477, IEC61000, and UN38.3 standards.
Hoja de datos del producto
Hoja de datos del producto
Gotion ESC-R100-211-CE 211kWh 100kW All-in-One Energy Storage System
