Especificaciones
Especificaciones
| Annual degradation year 2 30 | ≤0.35% |
| Cable length mm | 1200 |
| Cable specification | 4mm² IEC / 12AWG UL |
| Cell arrangement | 6x18 |
| Cell count | 108 |
| Cell type | N-Type ABC |
| Connector type | MC4-Evo2 |
| Dimension depth mm | 30 |
| Dimension length mm | 1757 |
| Dimension width mm | 1134 |
| Efficiency percent | 23.3 |
| Fire rating | IEC Class C |
| First year degradation | ≤1% |
| Frame material | Black anodized aluminum |
| Front cover | 3.2mm tempered glass |
| Hail test | 25mm diameter at 23m/s |
| Imp a | 13.41 |
| Isc a | 14.29 |
| Maximum series fuse rating | 25A |
| Maximum static loading back pa | 2400 |
| Maximum static loading front pa | 5400 |
| Maximum system voltage | DC1500V |
| Modules per container | 216 |
| Modules per pallet | 36 |
| Operating temperature range | -40°C to +85°C |
| Pallets per container | 6 |
| Power output at 30 years percent | 88.85 |
| Power warranty years | 30 |
| Product warranty years | 25 |
| Protection class | Class II |
| Temperature coefficient isc | +0.05%/°C |
| Temperature coefficient pmax | -0.26%/°C |
| Temperature coefficient voc | -0.22%/°C |
| Vmp v | 34.68 |
| Voc v | 41.12 |
| Wattage w | 465 |
| Weight kg | 21.5 |
Descripción
Descripción

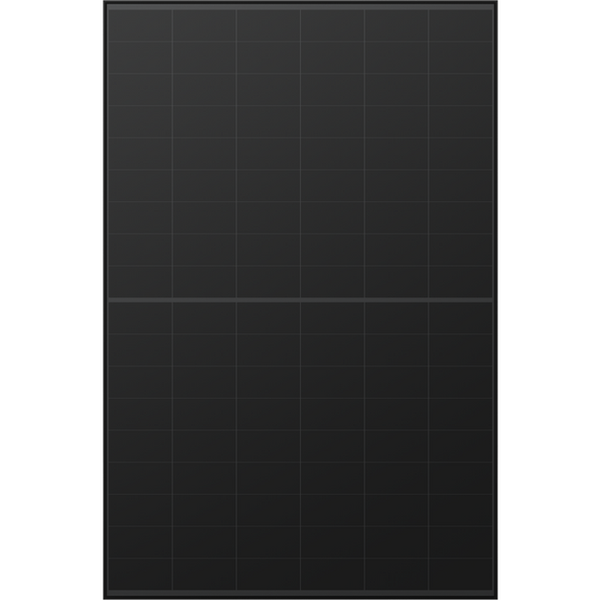

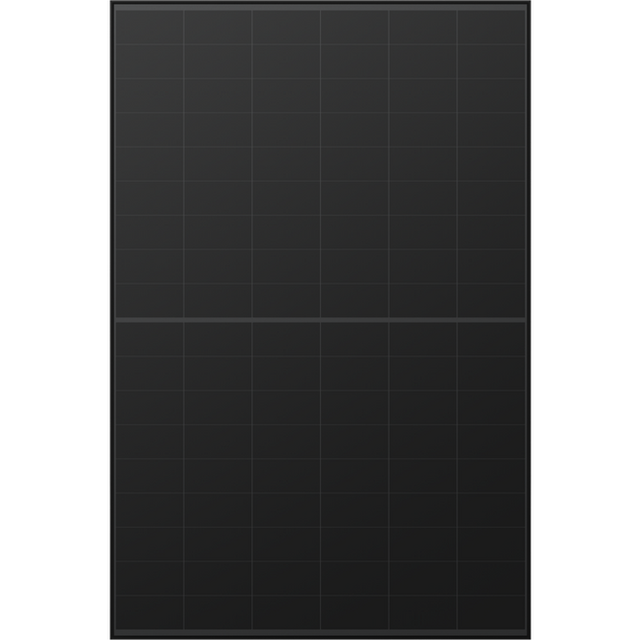

The Aiko Neostar 2S AK-A465-MAH54Mb-BK is a 465W N-Type ABC monocrystalline solar module featuring 108 high-efficiency cells arranged in a 6×18 configuration. With a module efficiency of 23.3%, it delivers 234W per square meter and incorporates 3.2mm tempered glass with anti-reflective coating on an all-black frame design.
This Generation 2 panel includes partial shading optimization and cell-level overheating protection to reduce hot-spot risk and enhance performance in shaded environments. The module operates across a temperature range of −40°C to +85°C and is rated for maximum system voltages up to DC1500V with a 25A series fuse rating.
Construction includes a black anodized aluminum frame, IP68-rated junction box with three bypass diodes, and MC4-Evo2 connectors. The module measures 1757×1134×30mm and weighs 21.5kg, backed by a 25-year product warranty and 30-year linear performance warranty.
Hoja de datos del producto
Hoja de datos del producto
Aiko Neostar 2S 465W Mono-Glass Module
