Especificaciones
Especificaciones
| Annual degradation year 2 30 | ≤0.35% |
| Back static loading pa | 2400 |
| Cable length mm | 1200 |
| Cable size | 4mm² (IEC) / 12AWG (UL) |
| Cell arrangement | 6x18 |
| Cell count | 108 |
| Cell type | N-Type ABC |
| Certifications | IEC 61215, IEC 61730, IEC 62804, IEC 61140, IEC 62716 |
| Connector type | MC4 |
| Dimensions mm | 1762 x 1134 x 30 |
| Efficiency percent | 24 |
| Fire rating | IEC Class A |
| First year degradation | ≤1% |
| Frame material | Black anodized aluminum |
| Front static loading pa | 5400 |
| Glass type | Dual glass 2.0 + 2.0 mm coated semi-tempered |
| Hail test rating | 35 mm diameter hail at 23 m/s |
| Imp a | 13.92 |
| Isc a | 14.8 |
| Junction box | IP68, 3 bypass diodes |
| Maximum series fuse rating a | 30 |
| Maximum system voltage vdc | 1500 |
| Modules per container | 962 |
| Modules per pallet | 37 |
| Operation temperature range | -40°C to +85°C |
| Performance warranty years | 30 |
| Power tolerance | 0~+3% |
| Product warranty years | 30 |
| Protection class | Class II |
| Temperature coefficient isc | +0.05%/°C |
| Temperature coefficient pmax | -0.26%/°C |
| Temperature coefficient voc | -0.22%/°C |
| Vmp v | 34.5 |
| Voc v | 40.9 |
| Wattage w | 480 |
| Weight kg | 24.2 |
Descripción
Descripción

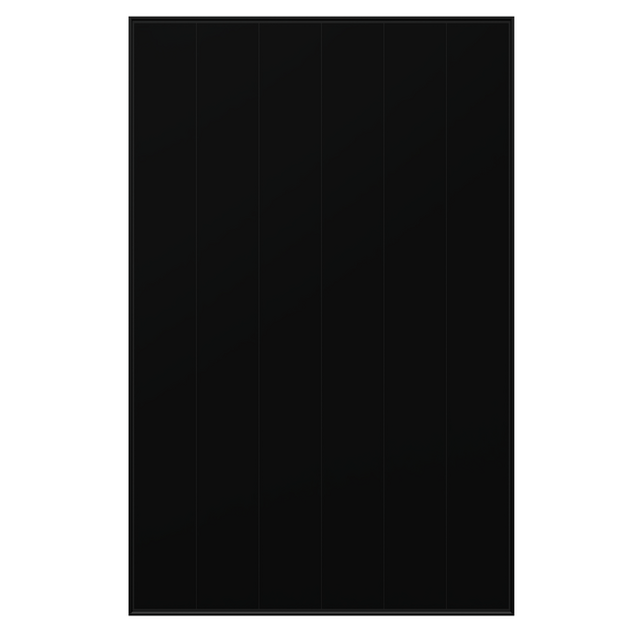

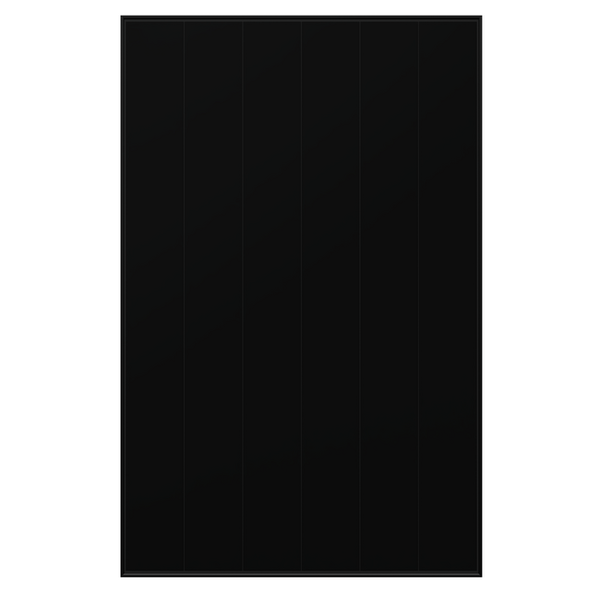

The Aiko AK-A480-MCE54Db-BK is a 480W N-Type ABC dual-glass solar module featuring 108 half-cut cells arranged in a 6×18 configuration. The module incorporates innovative Infinite Technology with partial shading optimization, improved temperature coefficients, and enhanced micro-crack resistance for superior performance and durability.
Built with dual 2.0 mm coated semi-tempered glass, a black anodized aluminum frame, and MC4 connectors, this module operates across a wide temperature range of -40°C to +85°C. With an efficiency rating of 24.0% and a power tolerance of 0~+3%, it delivers reliable energy conversion in diverse installation conditions.
The module is backed by a 30-year linear product warranty and 30-year performance warranty, ensuring long-term reliability. It complies with IEC Class A fire rating, Class II protection, and withstands DC system voltages up to 1500V with a maximum series fuse rating of 30A.
Hoja de datos del producto
Hoja de datos del producto
Aiko 480W N-Type ABC Dual-Glass Solar Module
