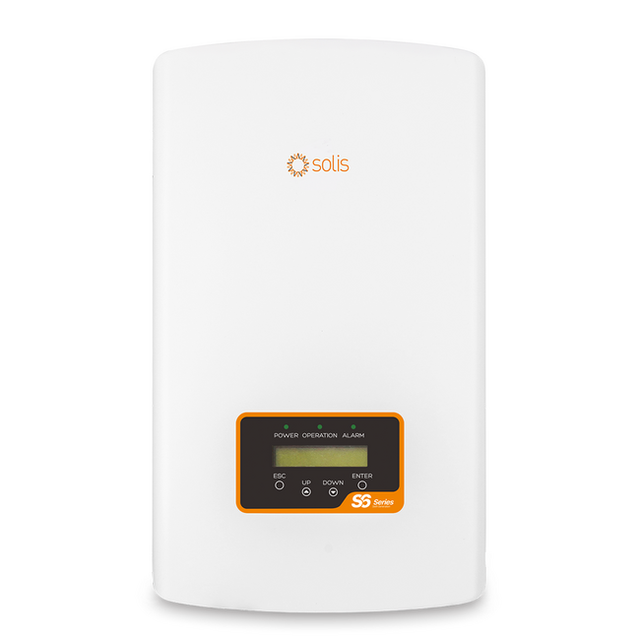

Solis S6-GR1P 4.6K Single Phase Grid-Tied Inverter

The Solis S6-GR1P 4.6K is a single-phase grid-tied inverter designed for residential solar systems. It features two independent MPPT trackers with a precise MPPT algorithm, delivering a maximum efficiency of 97.6%. The inverter incorporates super high-frequency switching technology, wide voltage range (90–520 V MPPT), and a low startup voltage of 120 V.

Key protection features include integrated AFCI (Arc Fault Circuit Interrupter) to reduce fire risk, DC reverse-polarity protection, short circuit protection, surge protection, and grid monitoring with anti-islanding capability. The unit supports an export power manager (EPM) for grid-friendly operation and features natural cooling with IP66 ingress protection.

Technical specifications: rated AC output 4.6 kW, max. input current 14 A, max. output current 23.8 A, dimensions 310 × 543 × 160 mm, weight 12 kg. Communication via RS485 with optional Wi-Fi/GPRS capability through data logger. Comes with a 10-year manufacturer warranty.
