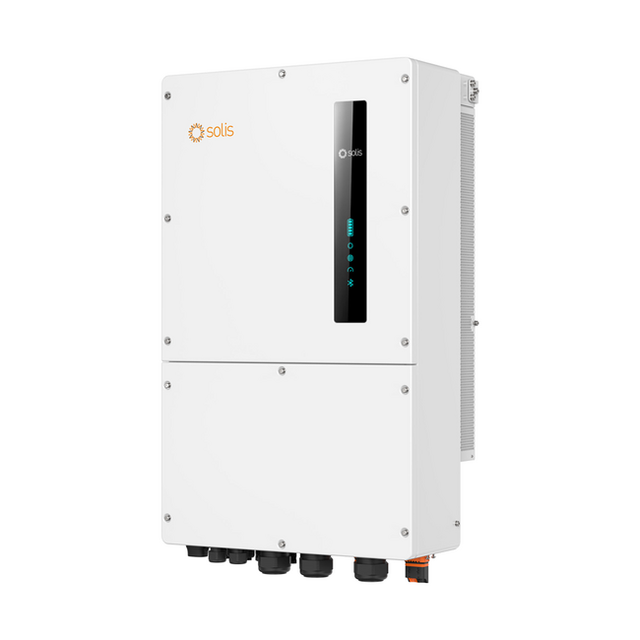

Solis S6-EH3P30K-H-LV-ND 30kW Three-Phase Hybrid Inverter

The Solis S6-EH3P30K-H-LV-ND is a three-phase high-voltage hybrid inverter rated at 30 kW AC output, designed for residential and commercial energy storage installations. It features 3 MPPT trackers with 6 DC inputs, supporting flexible PV connection through DC and AC coupling. The inverter integrates battery management with support for Li-ion batteries up to 800V, enabling both grid-tied and off-grid operation with seamless switching time under 10ms.

Key capabilities include maximum usable PV input power of 60 kW, battery charge/discharge power up to 33 kW with support for dual independent battery connections, and powerful backup overload capability at 160% rated power. The device achieves maximum efficiency of 96.3% and features intelligent fan cooling with IP66 protection rating for outdoor installation.

Communication interfaces include CAN, RS485, Ethernet, and optional Wi-Fi/Cellular connectivity. The inverter includes integrated DC switch, reverse-polarity protection, and comprehensive safety certifications including anti-islanding protection and optional AFCI 2.0.
