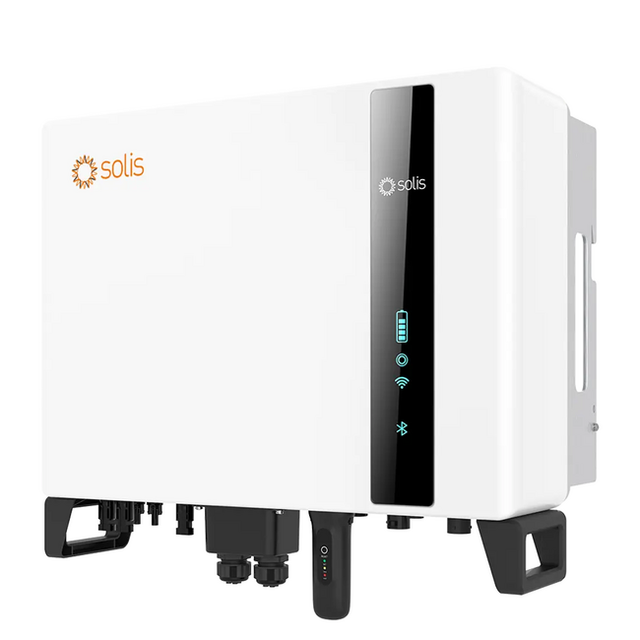

Solis S6-EH3P10K2-H 10kW Three Phase Hybrid Energy Storage Inverter

The Solis S6-EH3P10K2-H is a three-phase hybrid energy storage inverter with 10 kW rated output power and 10 kVA maximum apparent power. It features two independent MPPT trackers with 2 input strings, supporting a maximum PV input power of 16 kW at a maximum DC voltage of 1000 V. The inverter is compatible with lithium-ion battery systems (voltage range 120–600 V) and supports both grid-connected and backup operation modes with automatic UPS switching.

Industry-leading specifications include a maximum charge/discharge rating of 50 A at 10 kW, peak shaving capability, and integrated arc fault detection (US AFCI optional). The unit delivers 97.9% maximum efficiency and supports unbalanced and half-wave loads on both grid and backup ports. Pre-made battery, meter, and CAN cabling reduce installation time, while multiple communication options (CAN, RS485, optional Wi-Fi/LAN/Cellular) enable seamless monitoring via SolisCloud portal.

Designed for European and global installations, it complies with G98/G99 grid connection standards and features natural cooling, IP66 ingress protection, and wide operating temperature range (-25 to +60°C). The unit comes with a 10-year factory warranty and weighs 30.2 kg.
