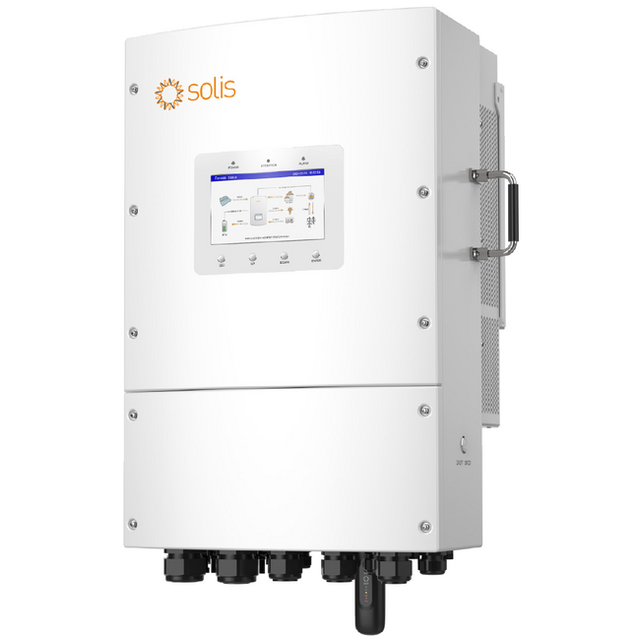

Solis S6-EH3P10K02-NV-YD-L 10kW Three-Phase Hybrid Energy Storage Inverter

The Solis S6-EH3P10K02-NV-YD-L is a three-phase hybrid energy storage inverter rated at 10 kW AC output with a maximum PV input of 16 kW. It features 2 independent MPPT trackers and supports dual backup ports for intelligent load management during grid outages. The inverter is compatible with both generator and battery systems, with a maximum battery charge/discharge current of 220 A on the 10 kW model.

Key capabilities include support for unbalanced and half-wave loads, weak grid compensation, and 10 seconds of 200% overload capability. The unit incorporates a 7-inch LCD display with Bluetooth and optional Wi-Fi/LAN communication, along with integrated energy metering and arc fault detection. Maximum efficiency reaches 97.6% with EU efficiency at 97.0%.

Housed in a compact 430 × 660 × 305 mm enclosure (42 kg), the inverter operates across ambient temperatures from −40 to +60 °C and is rated IP66 for outdoor installation. It supports communication via CAN, RS485, and Ethernet, with optional cellular connectivity available.
