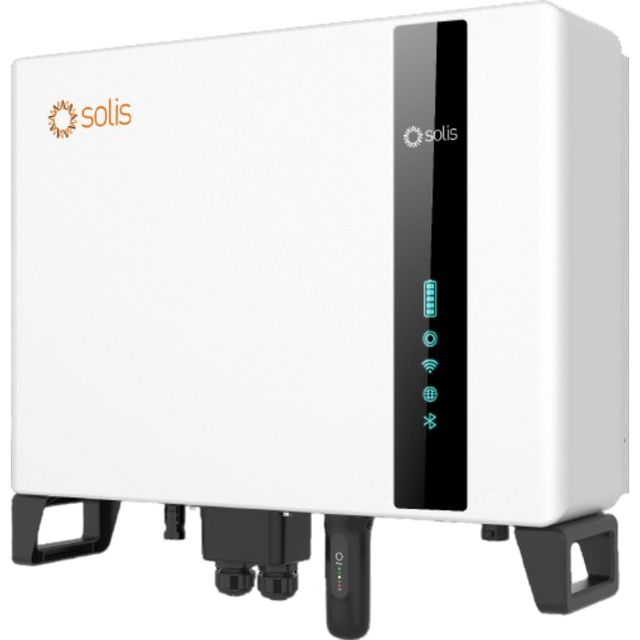

Solis S6-EA3P10KAA-NV-ND-H 10kW Three Phase High Voltage AC-Coupled Inverter

Download datasheet

Specifications

Ac power kw	10
Battery voltage range	120–600 V (up to 700 V)
Communication	CAN, RS485, Optional: Wi-Fi, Cellular, LAN
Dimensions mm	600 × 500 × 230
Efficiency eu	97.51%
Ingress protection	IP66
Max charge discharge current	50 A
Phase	3-phase
Topology	Transformerless
Warranty years	10
Weight kg	26.9

Description

The Solis S6-EA3P10KAA-NV-ND-H is a three-phase, high-voltage AC-coupled inverter rated at 10 kW (10 kVA), designed for residential and commercial energy storage systems. It supports battery voltage ranges from 120–600 V (up to 700 V) and features a maximum charge/discharge current of 50 A, making it compatible with multiple lithium battery brands.

Key capabilities include six Time of Use (TOU) battery charging and discharging settings, peak shaving control, and real-time battery monitoring with remote upgrade and battery healing functions to extend battery life. The unit delivers 97.5% maximum efficiency and complies with EU standards including VDE-AR-N 4105 and EN 50549 grid connection requirements.

The inverter features dual RS485 communication ports for remote upgrade and Virtual Power Plant (VPP) control, plus optional Wi-Fi, cellular, and LAN connectivity. It is housed in an IP66-rated enclosure with natural cooling, operates silently at less than 47 dB(A), and includes LED indicators with Bluetooth and app support for monitoring and control.
