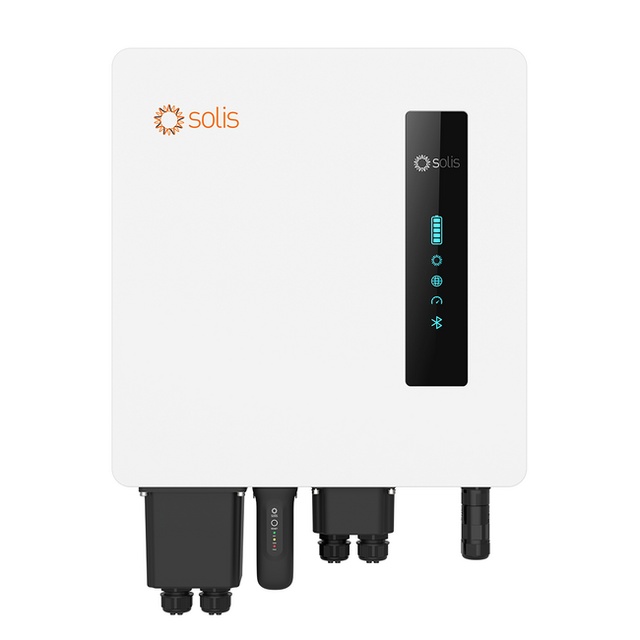

Solis S6-EA1P4.6K-L Single Phase AC-Coupled Inverter 4.6kW

The Solis S6-EA1P4.6K-L is a single-phase, low-voltage AC-coupled inverter rated at 4.6 kW (4.6 kVA), designed for residential energy storage systems with lithium-ion batteries in the 40–60 V range. It features real-time battery monitoring, multiple time-of-use charging and discharging modes, peak shaving capabilities, and low-power standby operation to optimize system efficiency.

The inverter operates at a maximum efficiency of >93.5% (battery to AC), with comprehensive protection including battery reverse polarity, over/under voltage, short circuit, and temperature monitoring. Communication options include CAN, RS485, and optional Wi-Fi and LAN connectivity via Bluetooth and mobile app integration.

Housed in an IP66-rated, naturally cooled enclosure measuring 440 × 465 × 192 mm, the unit weighs 24.5 kg and is certified for grid connection standards C10/11, 50549, G98, G99, VDE4105, AS4777.2, and France-specific regulations. It carries a 10-year factory warranty across Europe.
