PVX Minimount Ø8.5mm Cable Tray Mounting System for Rail and Panel Installation

Name: PVX Minimount Ø8.5mm Cable Tray Mounting System for Rail and Panel Installation
Brand: PVX
Availability: InStock

Download datasheet

Specifications

Cable tray width range mm	60–300
Certification	NEN 1010, Scope 12
Color	Grey
Dimensions mm	L 96 × B 65 × H 27, Ø8.5mm
Material	Nylon PA6GF30, halogen-free, UV-resistant
Max load kg	600
Max snow load kg	600
Operating temperature range	−40 °C to +100 °C
Sealing	EPDM O-ring
Warranty years	15
Weight kg	0.050
Wind force rating	10

Description

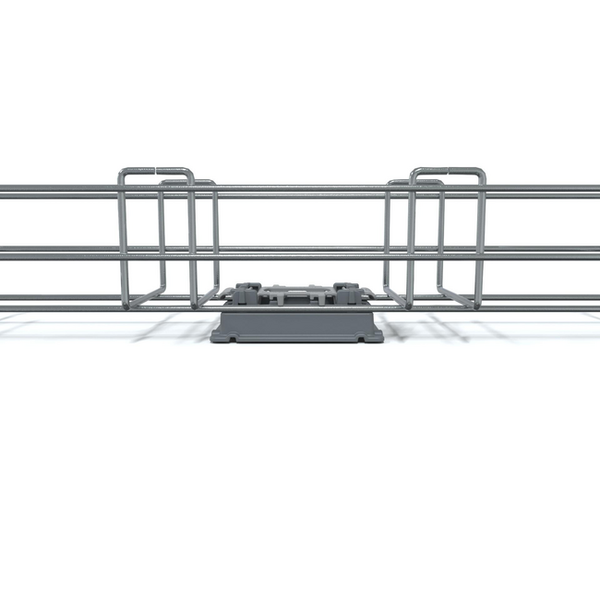

The PVX Minimount is a multifunctional mounting system designed for installing cable trays on mounting rails and solar panel mounting systems. It features a hands-free multilock system for tool-free assembly and disassembly, with an EPDM O-ring for watertight installation.

The system accommodates cable trays 60–300 mm wide and is manufactured from halogen-free Nylon PA6GF30, making it UV-resistant and durable in outdoor environments. It supports loads exceeding 600 kg (load and snow load) and is wind-load certified (wind force 10). Operating temperature range is −40 °C to +100 °C.

Each unit includes one cable tray clip. The product carries a 15-year warranty and is certified to NEN 1010 and Scope 12 standards.
