Masterplug EVCM3SS22B/EU Smart EV Charger IP65 Mode 3 22kW 415V Socket + WiFi/ETH

Name: Masterplug EVCM3SS22B/EU Smart EV Charger IP65 Mode 3 22kW 415V Socket + WiFi/ETH
Brand: Masterplug
Availability: InStock

Unit - Vendor 159

Spain · EXW

MODEL EVCM3SS22B/EU

Ficha Técnica

• NOT sold or offered for the UK market.
• Price valid for EXW orders.
• Immediate availability.
• Shipping cost to Peninsular Spain: €20. Please inquire for other areas.

BOX 4 Units - Vendor 159

Spain · DDP

MODEL EVCM3SS22B/EU

Ficha Técnica

• NOT sold or offered for the UK market.
• Price valid for box of 4 chargers.
• Immediate availability.
• Free shipping to Peninsular Spain. Please inquire for other areas.

Can't find it? We'll source it

Any spec, brand or volume — add it below and we'll source it with your order.

Specifications

Ac power kw	22
Cable length m	-
Connector type	Type 2
Current rating a	32
Ip rating	IP65
Mode	Mode 3
Phase	Three-phase
Voltage ac	415V
Warranty product years	3

Description

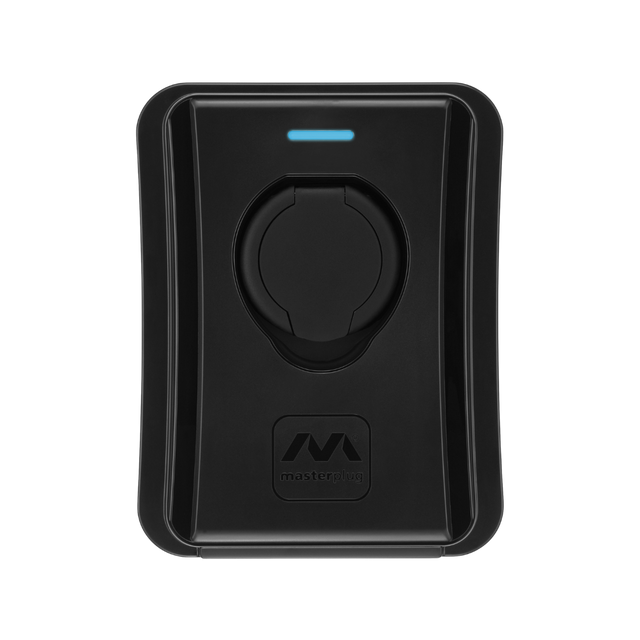

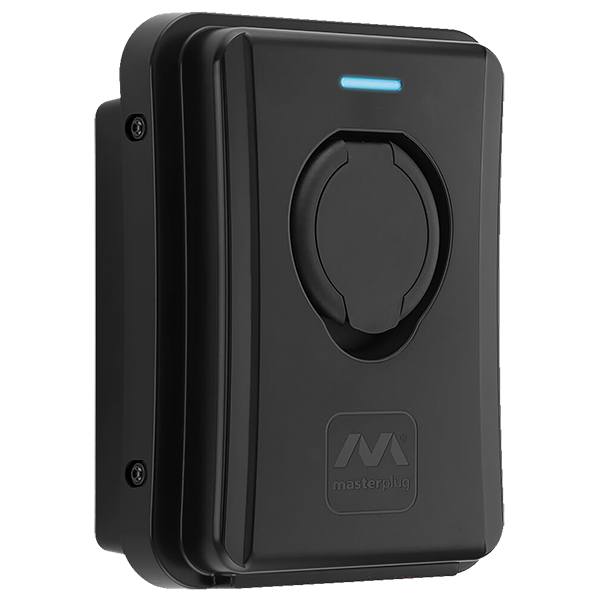

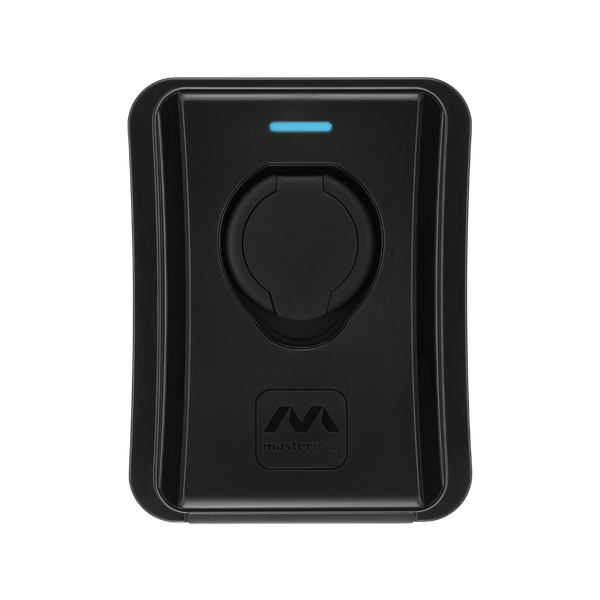

The Masterplug EVCM3SS22B/EU is a smart Mode 3 EV charger designed for higher-power AC charging of electric vehicles and plug-in hybrids with a Type 2 connection. This model features a Type 2 socket with auto-lock, providing a flexible solution for users who prefer to connect their own charging cable.

Delivering up to 22kW from a three-phase 400V supply, the charger offers configurable charging current up to 32A. Smart charging is managed through the Sync Energy App, with Wi-Fi, LAN and Bluetooth connectivity for setup, scheduling, charge monitoring and energy usage control.

The EVCM3SS22B/EU includes integrated 30mA Type A RCD protection, 6mA DC leakage detection and built-in safety protection for reliable operation. Supplied with a load management clamp, it supports dynamic load management and solar charging functionality. Its black UV-resistant polycarbonate enclosure is rated IP65 for weather resistance and IK08 for impact protection, making it suitable for indoor and outdoor installations.
