36
Modules per pallet
936
Modules per container
26
Pallets per container
Specifications
Specifications
| Cell technology | n-type Bifacial |
| Dimensions | 1762±2mm × 1134±2mm × 30±1mm |
| Efficiency | 22.8% |
| Frame | silverframe |
| Modules per container | 936 |
| Modules per pallet | 36 |
| Pallets per container | 26 |
| Warranty power years | 30 |
| Warranty product years | 25 |
| Wattage w | 455 |
| Weight kg | 22 |
Description
Description
n-type double glass bifacial module with MBB half-cell technology and 16 busbars. Features up to 26% cell conversion efficiency and delivers superior low irradiance response and better temperature coefficient performance compared to standard modules.
1% first-year degradation and 0.4% annual degradation over 30 years. Includes 25-year product warranty and 30-year linear power output warranty with bifaciality rating of 80%±10%.
Rated for 1500V DC maximum system voltage and 1.6mm front and back tempered glass. Suitable for utility-scale and residential installations with excellent performance in low-light conditions.
Product datasheet
Product datasheet

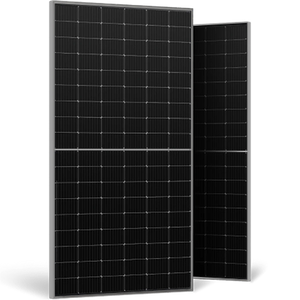

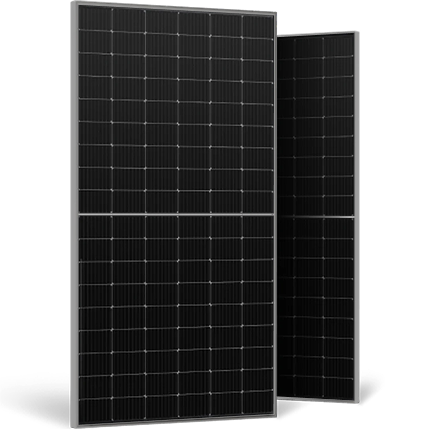

JA Solar JAM54D41 LB 455W n-type Bifacial
