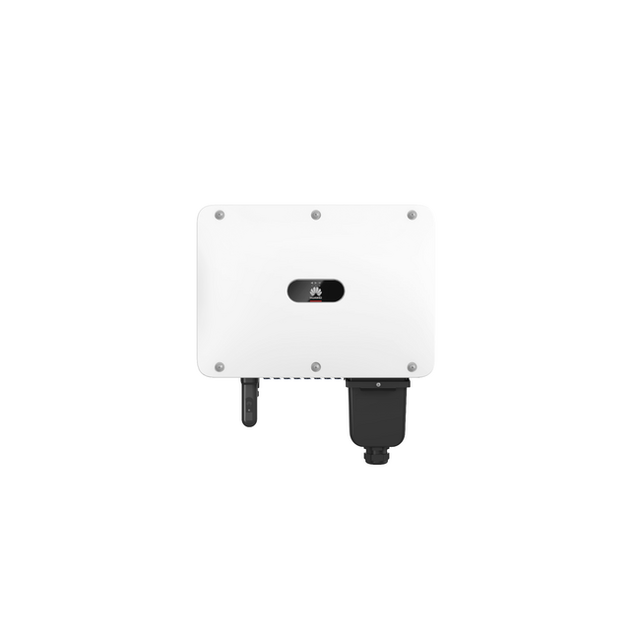

Huawei SUN2000-30K-MC0 30kW Three-Phase PV Inverter

The Huawei SUN2000-30K-MC0 is a 30 kW three-phase grid-tied PV inverter designed for commercial and utility-scale solar installations. It features 4 independent MPPT trackers, 8 input channels, and a maximum efficiency of 98.6% at 400V, delivering robust energy harvesting even under challenging conditions such as shading or variable irradiance.

The inverter incorporates comprehensive protection and safety features including DC reverse-polarity protection, arc fault detection, integrated surge protection (Type I + II DC, Type II AC), DC insulation monitoring, and PID recovery to mitigate module degradation. It supports optional connectivity via Smart Dongle for WLAN, Ethernet, or 4G/3G/2G communication with FusionSolar monitoring.

Built for reliability with a transformerless topology, IP66 protection degree, and natural convection cooling, the unit operates across -25 to +60°C and is rated for altitudes up to 4,000 m. DC connectors are Amphenol Helios H4; AC output is 380/400/480 Vac, 3-phase with adjustable power factor (0.8 LG to 0.8 LD).
