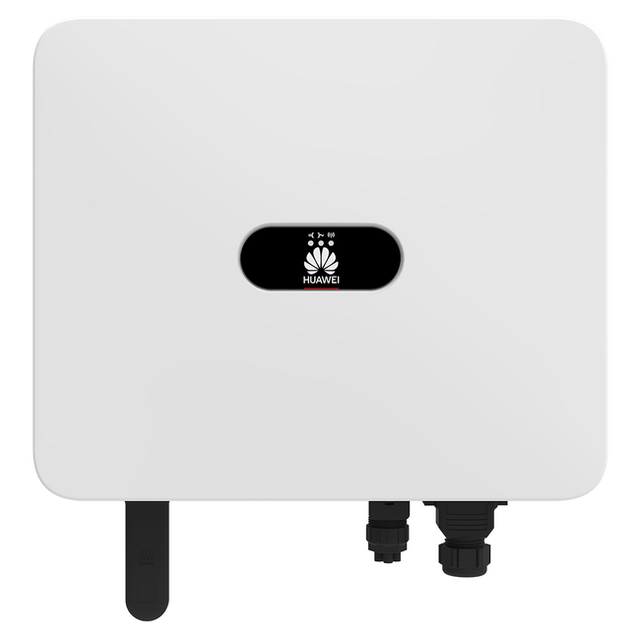

Huawei SUN2000-12K-MB0 Three-Phase Hybrid Inverter with Battery Ready

The Huawei SUN2000-12K-MB0 is a three-phase hybrid Smart Energy Controller with a rated output power of 12 kW, designed for medium-sized commercial photovoltaic installations. It features two MPPT trackers with four DC inputs, a maximum efficiency of 98.4%, integrated AFCI arc fault protection, and Type II surge protection on both the DC and AC sides.

The inverter is battery-ready, with two dedicated energy storage terminals compatible with Huawei LUNA2000-S0 series batteries (5–21 kW models), enabling intelligent energy management and load shifting. It supports up to 30% additional energy yield when paired with Huawei optimizers (SUN2000-450W-P2, SUN2000-600W-P, MERC-1100W-P, MERC-1300W-P).

Built-in communications include RS485 and integrated WLAN, expandable via optional Smart Dongle modules for 4G/3G/2G or Ethernet connectivity. The unit operates across a wide temperature range (−25 °C to +60 °C), features IP66 protection, and supports paralleling up to three units for larger installations.
