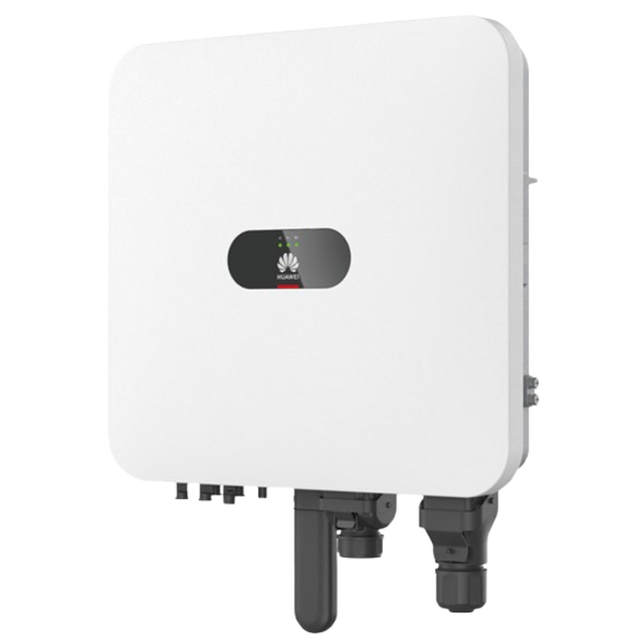

Huawei SUN2000-12K-MAP0 3-Phase Hybrid Inverter 12 kW

The Huawei SUN2000-12K-MAP0 is a three-phase hybrid inverter with a rated AC output power of 12,000 W and a maximum apparent power of 13,200 VA. It features two independent MPPT trackers with dual inputs, enabling optimized energy harvest from solar arrays with different orientations or under partial shading conditions. Maximum efficiency reaches 98.6%, with European weighted efficiency of 98.2%.

The inverter is compatible with Huawei LUNA2000 series batteries (LUNA2000-5/10/15-S0 and LUNA2000-7/14/21-S1) for whole-home backup capability when paired with a SmartGuard-63A-T0 device. It supports three-phase asymmetric load balancing at up to 200% overload for 10 seconds, and includes comprehensive protection features such as arc fault detection (AFCI), residual current detection (RSD), connector temperature monitoring, and TYPE II surge protection.

Designed for natural convection cooling with an IP66-rated enclosure, the unit operates in ambient temperatures from –25°C to +60°C and operates at altitudes up to 4,000 m. Communications options include integrated WLAN with FusionSolar APP, RS485, and optional 4G/3G/2G connectivity via Smart Dongle accessories.
