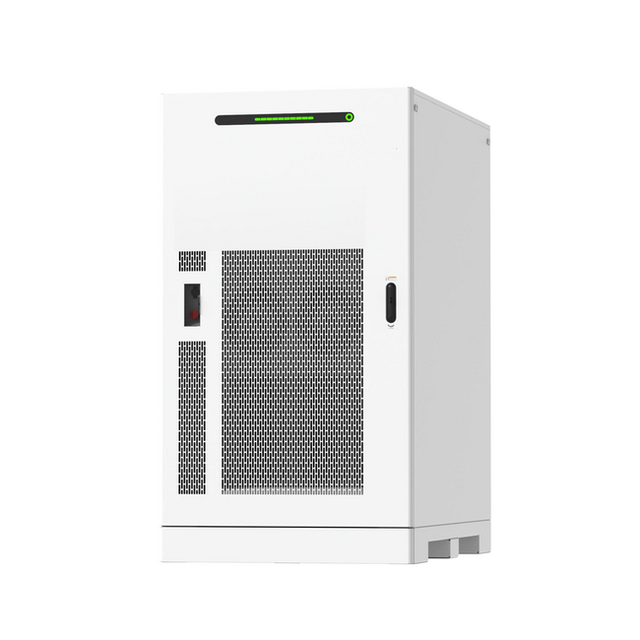

Huawei LUNA2000-241-2S1 C&I Hybrid Cooling Grid Forming ESS 241 kWh Battery Cabinet

Name: Huawei LUNA2000-241-2S1 C&I Hybrid Cooling Grid Forming ESS 241 kWh Battery Cabinet
Brand: Huawei
Availability: InStock

Download datasheet

Specifications

Ac power kw	108
Capacity	241 kWh
Cell technology	LFP
Cycle life	100% depth of discharge rated
Dimensions mm	1150 × 1800 × 2100
Efficiency percent	91.3
Ip rating	IP55
Phase	3-phase
Temperature operating range	-30 to 55 °C
Voltage nominal	648–852 V DC
Weight kg	2800

Description

The Huawei LUNA2000-241-2S1 is a 241 kWh commercial and industrial energy storage system featuring a fully integrated cabinet with 108 kW rated output power. It combines advanced LFP battery cells with hybrid cooling technology and active cell balancing for reliable, maintenance-free operation across a wide temperature range (-30 °C to 55 °C).

The system achieves 91.3% maximum cycle efficiency with 0–100% depth of discharge, enabling full utilization of stored capacity. It supports three-phase AC output (380/400/415 V, 50/60 Hz) and integrates seamlessly into grid-forming applications with anti-islanding protection, residual current detection, and insulation resistance monitoring. Up to 50 cabinets can be connected in parallel for scalability in larger installations.

Built with pack-level oxygen barrier, directional gas exhaust, and top explosion vents for enhanced safety, the unit is certified to UL9540A, UN38.3, IEC 62933-5, and VDE-AR-E 2510-2/50 standards. Communication via Ethernet or optical fiber using Modbus TCP ensures seamless integration with building management and grid systems.
