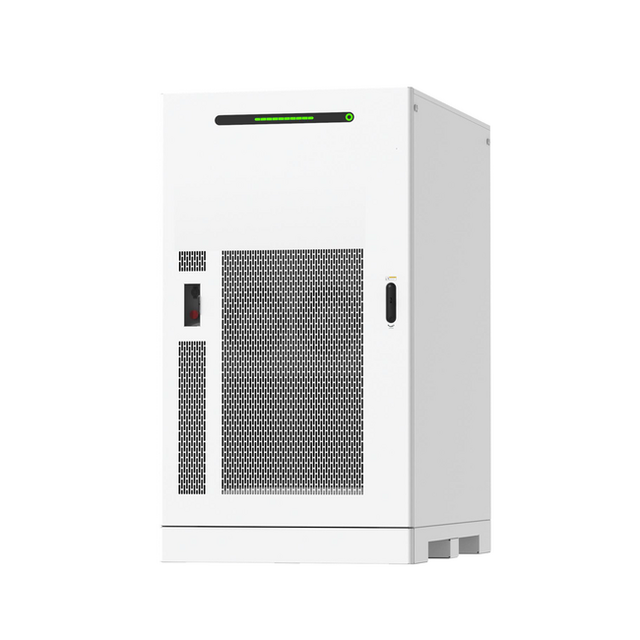

Huawei LUNA2000-107-1S11 Smart String ESS Battery Cabinet, 107.5 kWh, 108 kW

The Huawei LUNA2000-107-1S11 is a three-phase commercial and industrial energy storage system with a rated capacity of 107.5 kWh and a rated output power of 108 kW. This fully integrated cabinet combines LFP battery modules (280 Ah, 120S1P configuration) with an embedded PCS2000-108K-MB1 inverter, delivering a maximum round-trip efficiency of 86% and a depth of discharge of up to 100%.

The system features hybrid cooling technology, active cell balancing, an IP55 protection rating, and supports multiple AC voltage standards (380/400/415/420/440/480 V, 50/60 Hz). Communication is via Ethernet or optical fiber using the Modbus TCP protocol. Advanced safety features include a pack-level oxygen barrier, directional gas exhaust, a top-mounted explosion vent, and aerosol suppression, complemented by anti-islanding protection and residual current detection.

The operating temperature range is -30 °C to +55 °C (with derating above 50 °C), the storage temperature range is -35 °C to +60 °C, and the maximum altitude is 4,000 m. Up to 50 cabinets can be connected in parallel for scalability. Certifications include UL9540A, UN38.3, IEC 62477-1, IEC 62040-1, VDE-AR-E 2510-2/50, and EN 50549.
