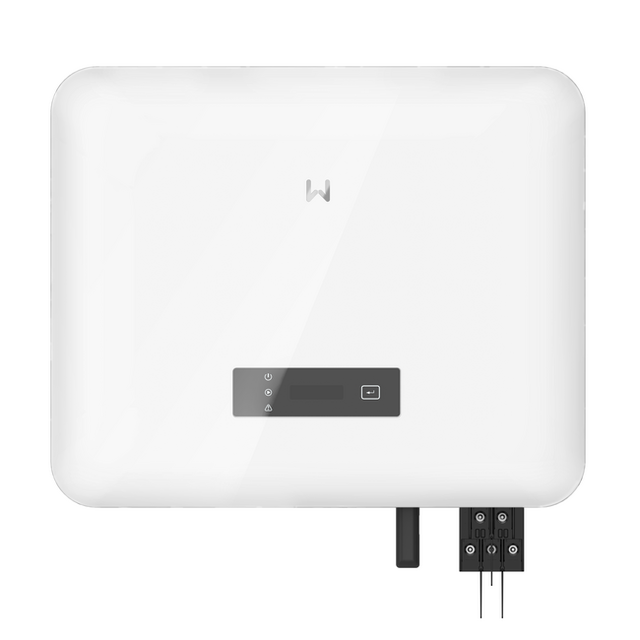

GoodWe GW6000-SDT-30 6kW Three-Phase String Inverter

The GoodWe GW6000-SDT-30 is a three-phase string inverter designed for residential and small commercial PV systems with high-power modules. It features a nominal AC output power of 6 kW with a maximum efficiency of 98.4% and European efficiency of 98.0%, making it ideal for high current input applications.

Equipped with 2 MPP trackers and supporting up to 22 A maximum input current per MPPT, the inverter provides precise MPPT tracking with an operating voltage range of 140–1000 V. It includes integrated protection features such as PV string current monitoring, insulation resistance detection, residual current monitoring, and anti-islanding protection. Optional Type II surge protection on both AC and DC sides is available for enhanced safety.

The inverter operates silently with natural convection cooling for the 4–6 kW models and supports smart energy management with load control and 24-hour consumption monitoring via WiFi, LAN, and Bluetooth connectivity. It carries a 5-year warranty and operates in temperatures from −30 to +60 °C with an IP66 ingress protection rating.
