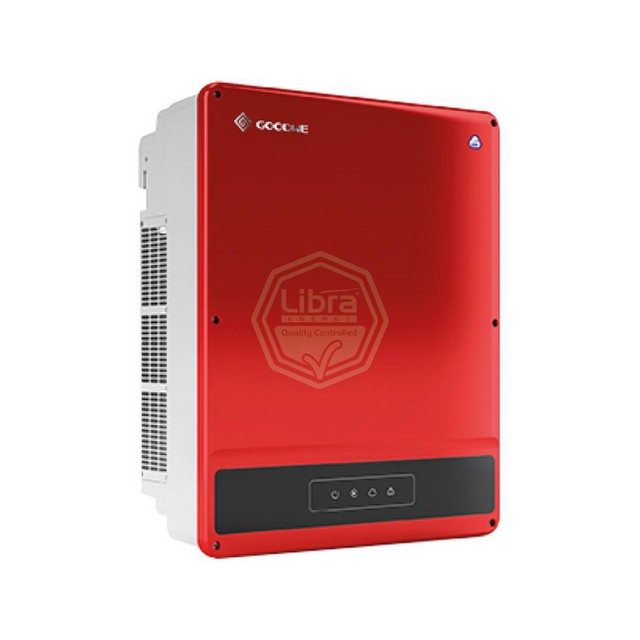

GoodWe GW36K-MT-RS485 36kW Three-Phase String Inverter

The GoodWe GW36K-MT-RS485 is a three-phase string inverter rated at 36 kW nominal output power, designed for commercial rooftop solar installations with complex layouts. It features three MPPT inputs with six strings per MPPT and a maximum efficiency of 98.8%, delivering consistent high performance even in partially shaded conditions.

The inverter operates with a wide MPPT voltage range of 200–950 V and full rated power up to 45°C. It includes integrated protection against AC and DC overvoltage (Type II), reverse polarity, ground faults, and anti-islanding. RS485 communication is standard, with optional WiFi and 4G connectivity for remote monitoring and integration with the GoodWe Smart Energy Controller SEC1000.

Compact dimensions (480 × 590 × 200 mm) and low weight (40 kg) facilitate installation. The unit is IP65-rated and features intelligent fan cooling for operation across a wide temperature range of −30 to +60°C.
