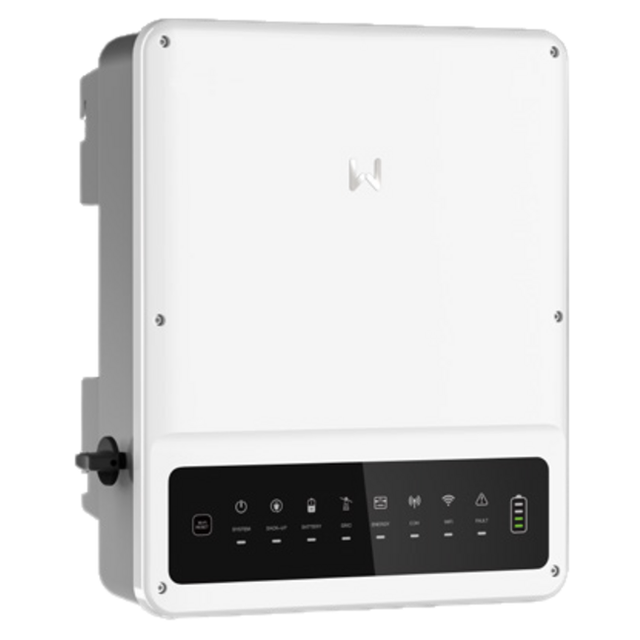

GoodWe GW3600N-EH-2 3.6kW Hybrid Inverter Single Phase HV

Name: GoodWe GW3600N-EH-2 3.6kW Hybrid Inverter Single Phase HV
Brand: GoodWe
Availability: InStock

Download datasheet

Specifications

Ac power kw	3.6
Backup power va	3600
Battery voltage nominal v	350
Battery voltage range v	85–460
Cooling method	natural convection
Dimensions mm	354 × 433 × 147
European efficiency	97.0%
Ip rating	IP65
Max ac output current a	16
Max charging power w	6000
Max discharging power w	3600
Max efficiency	97.6%
Max input power w	5400
Mppt count	2
Phase	1
Switching time ms	<10
Weight kg	17

Description

The GoodWe GW3600N-EH-2 is a 3.6kW single-phase hybrid inverter designed for residential PV systems with battery storage. It features high-voltage battery compatibility (85–460V nominal 350V), 2 MPPT trackers, and advanced energy management for on-grid and off-grid backup operation.

The inverter delivers 97.6% maximum efficiency and 97.0% European efficiency, with intelligent UPS switching in under 10ms for seamless backup power. It includes integrated protection against PV reverse polarity, residual current, AC overvoltage, and short-circuit events. The fanless natural-convection cooling design ensures silent, reliable operation in temperatures from −25 to +60°C.

Compatible with high-voltage batteries including GoodWe Lynx Home F and BYD HVS/HVM models, the GW3600N-EH-2 supports smart home integration via WiFi/Ethernet (optional) and RS485 communication. Dimensions 354 × 433 × 147 mm; wall-mounted IP65 enclosure; weight 17 kg. Includes energy meter and battery/meter data cables.
