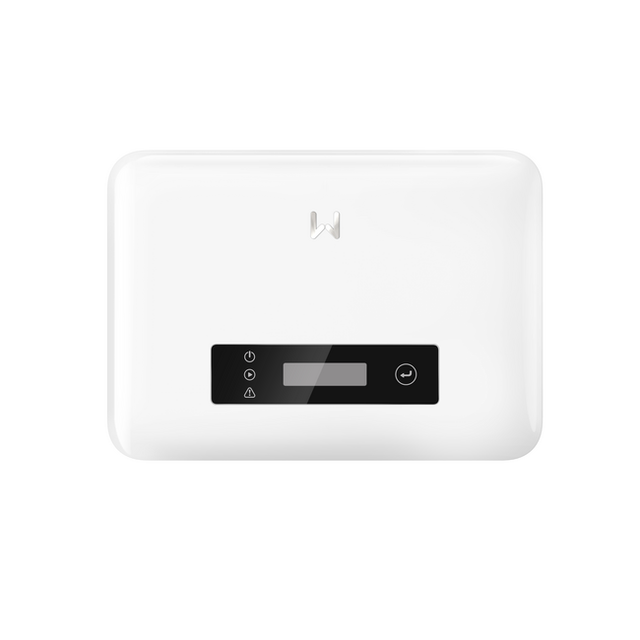

GoodWe GW3000-XS-30-4 3kW Single-Phase String Inverter

The GoodWe GW3000-XS-30-4 is a compact, lightweight single-phase string inverter rated at 3000W AC output. Part of the XS G3 series, it features 1 MPPT with 1 input string, a maximum input current of 16A, and operates with a maximum efficiency of 97.6%. The inverter supports multiple communication protocols including RS485, WiFi, LAN, and optional Bluetooth, enabling smart home integration and remote monitoring via app and web interfaces.

Designed for silent residential operation with natural convection cooling and noise emissions below 20 dB, the unit measures 306 × 218 × 119 mm and weighs 4.6 kg. It includes comprehensive protection features such as PV string monitoring, insulation resistance detection, anti-islanding protection, and AC/DC surge protection (Type III standard, Type II optional). The inverter operates across an ambient temperature range of −25 to +60 °C and features an IP66 ingress protection rating.

The GW3000-XS-30-4 accepts DC input up to 600V with an MPPT operating range of 40–450V and a low 50V startup voltage. AC output is single-phase (220/230/240V L/N/PE) with a maximum output current of 13.7A. Optional accessories enable power export limiting and 24-hour load monitoring capabilities.
