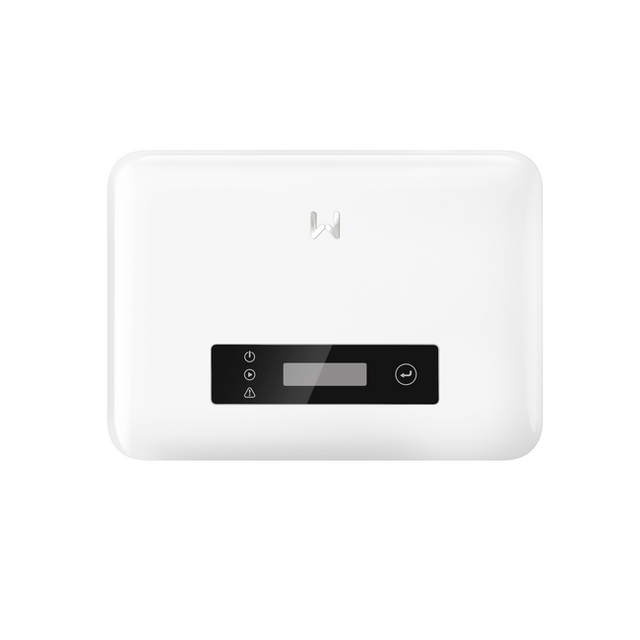

GoodWe GW2500-XS-30-4 2500W Single-Phase String Inverter

Specifications

Ac power kw	2.5
Dimensions mm	306 × 218 × 119
Max efficiency percent	97.6
Max input current a	16
Max output current a	11.4
Mppt count	1
Noise emission db	<20
Operating temperature range c	-25 to +60
Phase	single
Weight kg	4.6

Description

The GoodWe GW2500-XS-30-4 is a compact, lightweight single-phase string inverter designed for residential PV systems. Part of the XS G3 series, it delivers 2500W nominal output power with a maximum efficiency of 97.6% and supports high-current modules up to 16A input. The inverter features one MPPT tracker, low start-up voltage (50V), and operates across a wide MPPT range of 40–450V, making it compatible with modern high-power modules.

Built for silent operation and easy installation, the GW2500-XS-30-4 integrates comprehensive protection systems including PV string current monitoring, insulation resistance detection, residual current monitoring, anti-islanding, and surge protection. Communication options include RS485, WiFi, LAN, Bluetooth, and optional 4G, supporting Modbus-RTU and ModBus TCP protocols for smart home integration and remote monitoring.

The inverter operates naturally convected (fanless) with noise emissions below 20 dB and is rated IP66 for indoor or outdoor installation. It supports power export limiting and 24-hour load monitoring via optional GoodWe accessories.
